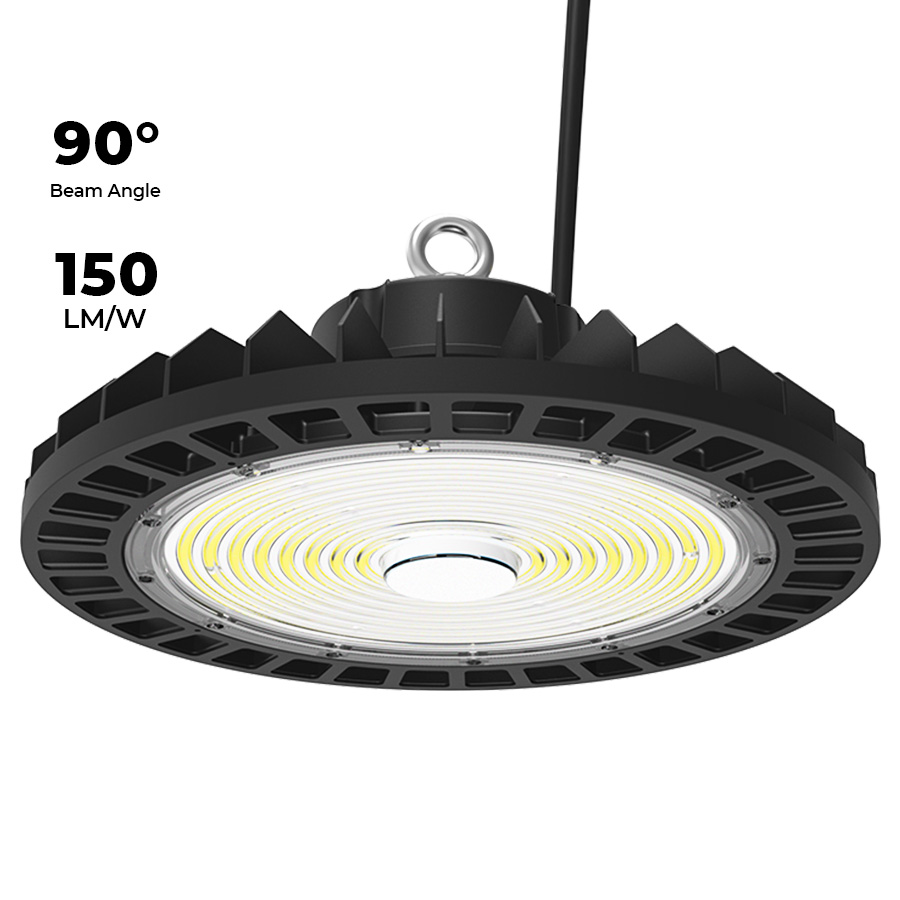

90W 120W 150W 200W 240W High Bay Lamps Industrial Commercial UFO Led High Bay Light

Product Description

LED High Bay Light Family

Product Description

The new UFO HBG15 lamps are intelligent, efficient and economical, energy-saving and environmentally friendly, illuminating your industrial field, bringing you more efficient productivity and high-quality lighting effects.

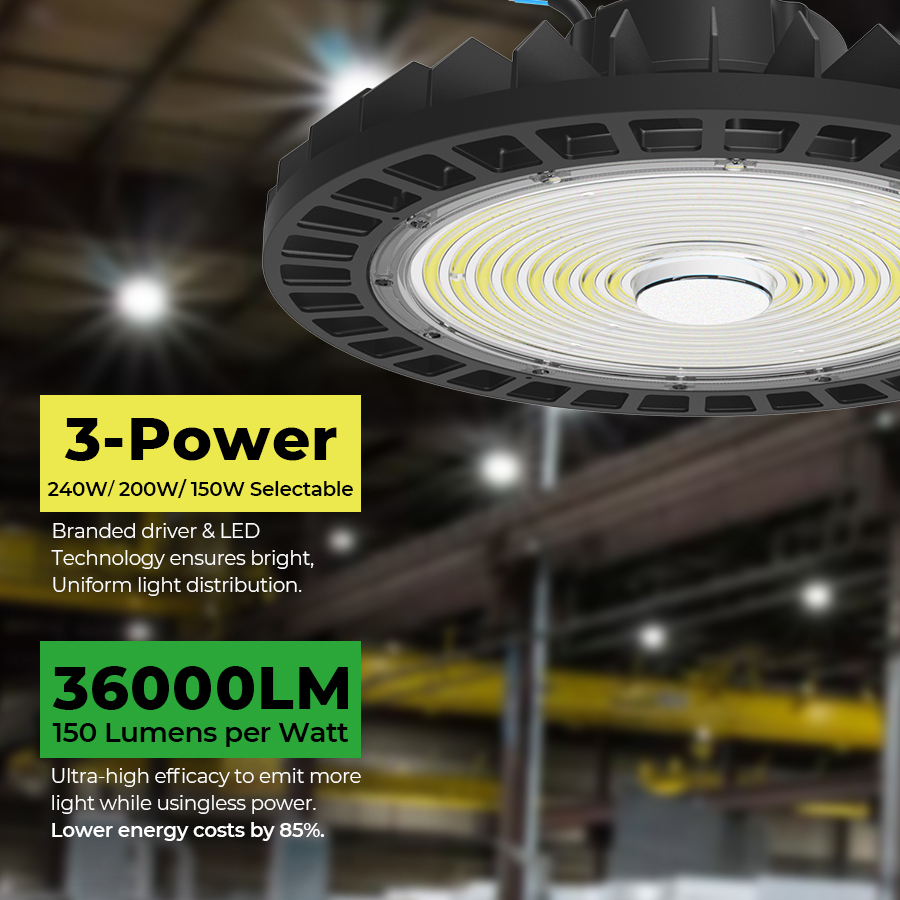

UFO High Bay Light Detail

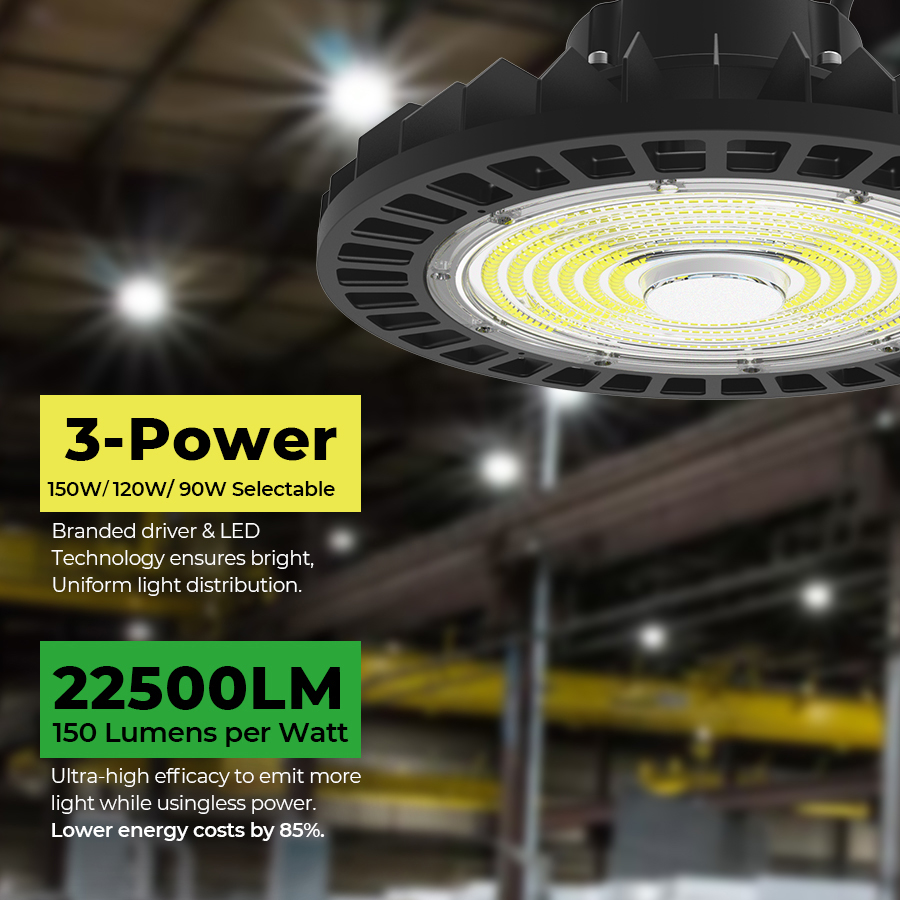

UFO High Bay Angle view

Key Features

• 90° Beam Angle, 3 Wattages in ONE, 0-10V Dimming

• Product luminous efficacy can be 150 lm/w to meet different requirements

• Complete product series, power covering 90W-240W

• Compatible with sensor function if needed

• Premium Driver, 5 years warranty, default with 0-10V dimming function

Heat Dissipation Design Detail

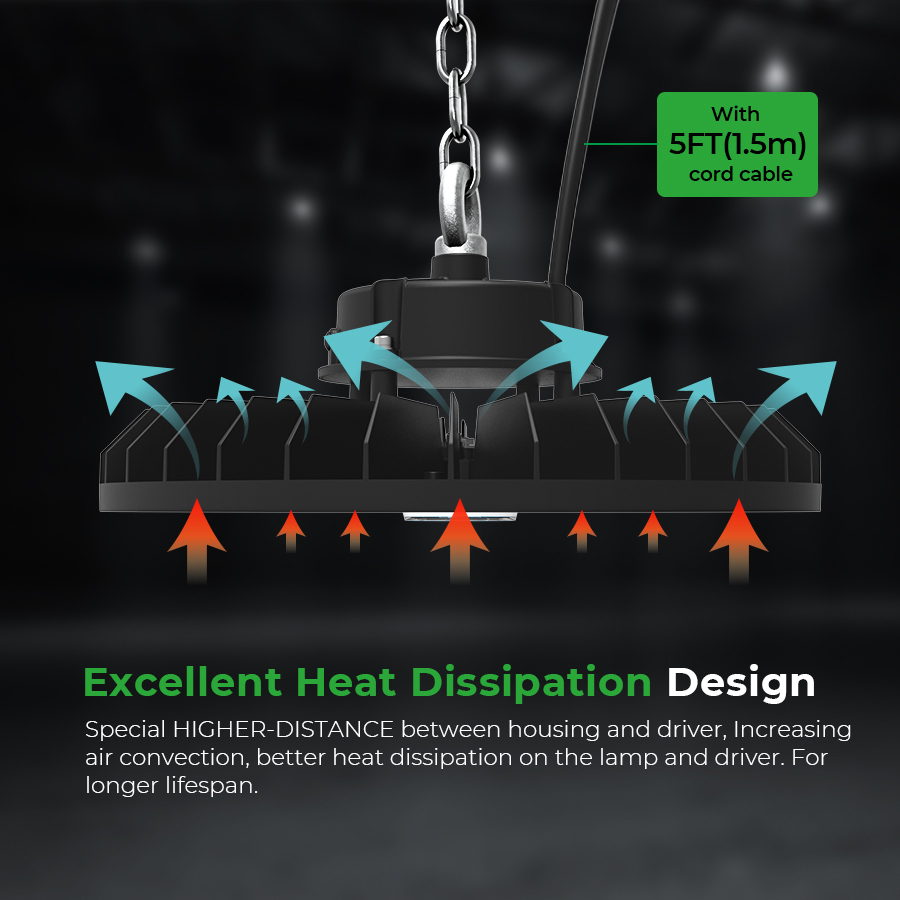

Excellent Heat Dissipation Design

Special HIGHER-DISTANCE between housing and driver, Increasing air convection, better heat dissipation on the lamp and driver for a longer lifespan.
Heat Convection Test
Driver Temperature Control
Lamp Housing Heat sink

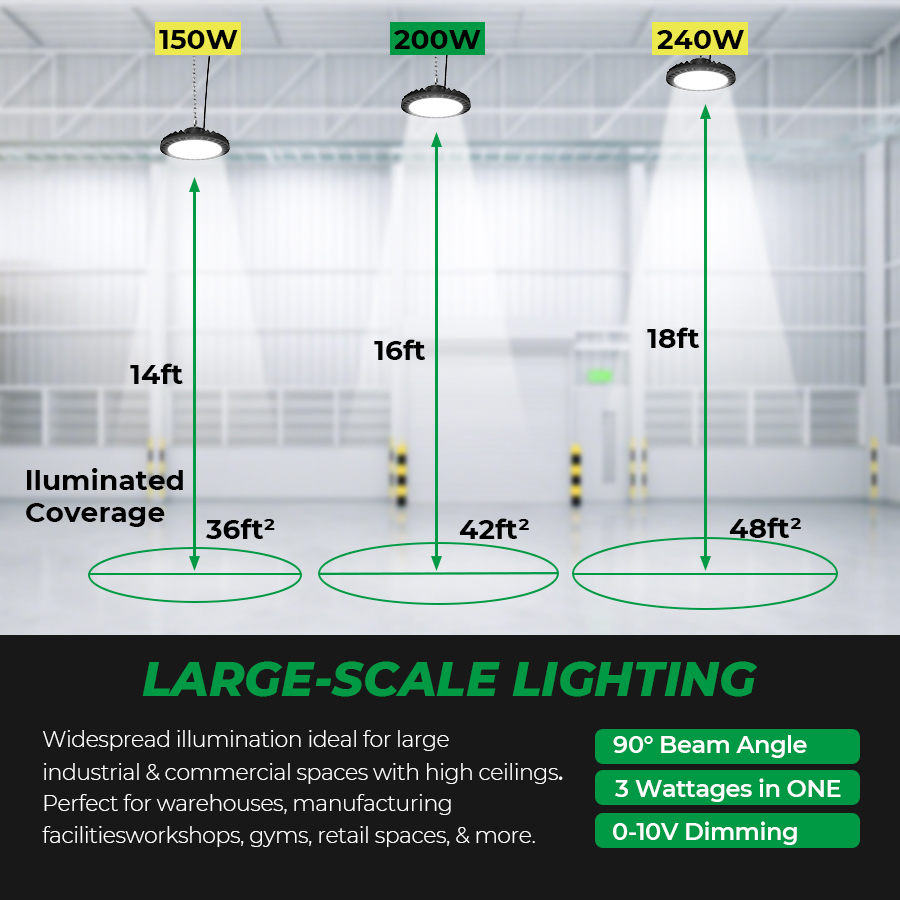

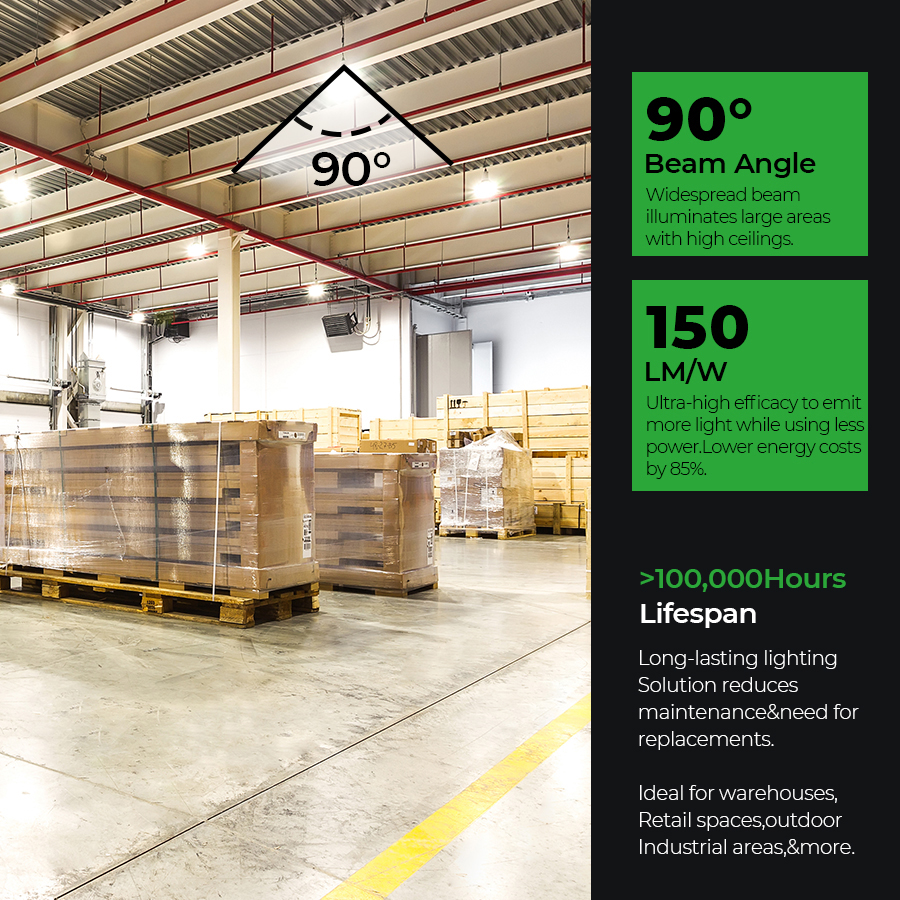

Wide spread illumination ideal for large industrial & commercial spaces with high ceilings.

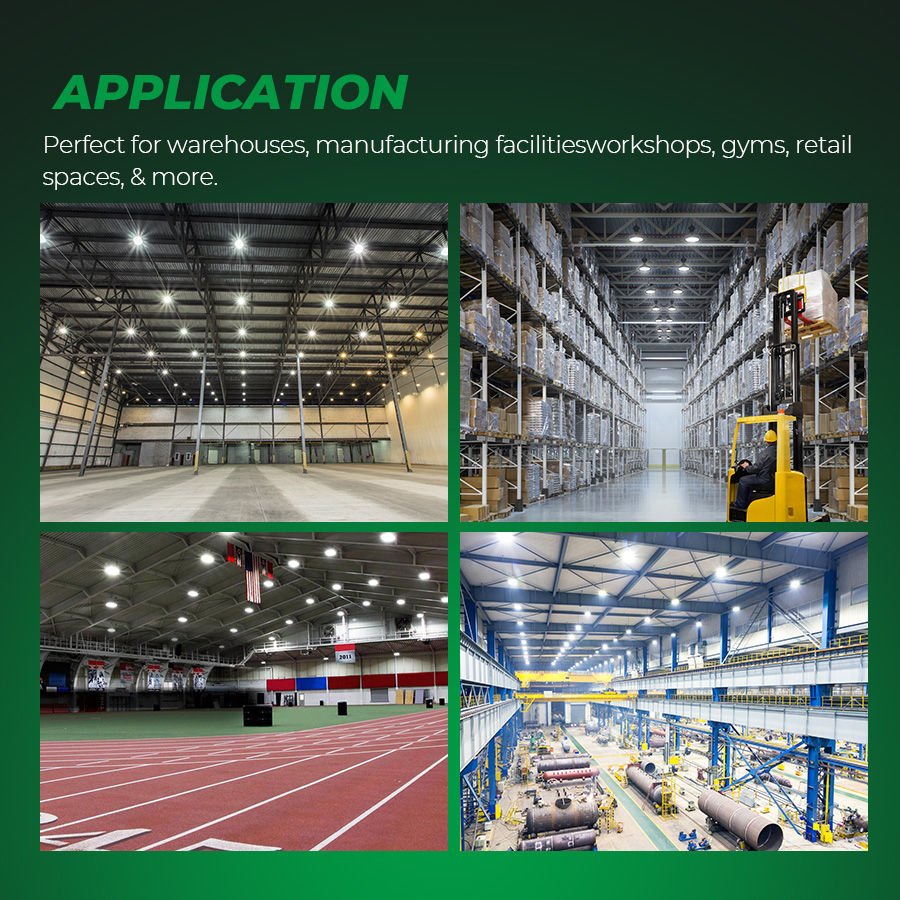

Perfect for warehouses, manufacturing facilities, workshops, gyms, retail spaces, and more.

Warehouse Lighting Project Application

Specification Table

Parameter 150W Selectable Model 240W Selectable Model
Power Options 150W / 120W / 90W Selectable (Default 150W) 240W / 200W / 150W Selectable (Default 240W)
Lumens Output 13,500 lm - 22,500 lm 22,500 lm - 36,000 lm
Efficacy 150 lm/w
Input Voltage 120-277Vac
Driver Brand Premium Quality Driver
Dimming 0-10V Dimming
CCT Options 4000K or 5000K
Beam Angle 90°
CRI 70+
Warranty & Certifications 5 Years Warranty, ETL cETL & DLC 5.1 Premium, CE, CB, SAA

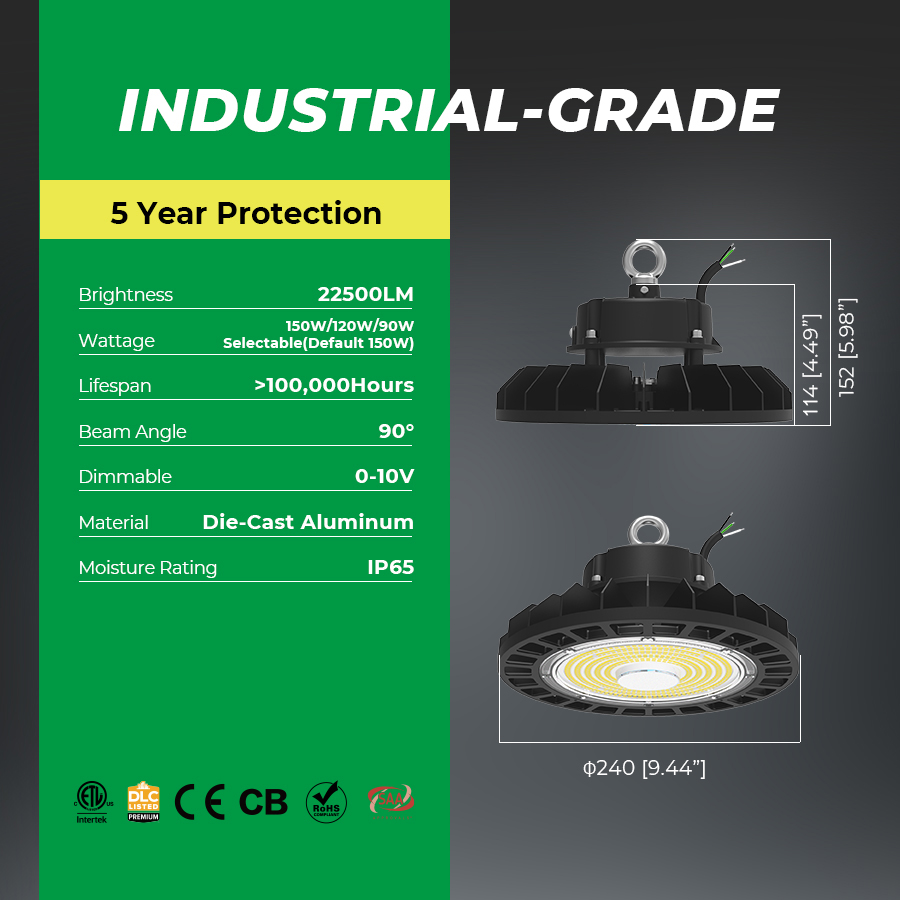

Dimension Draw 150W

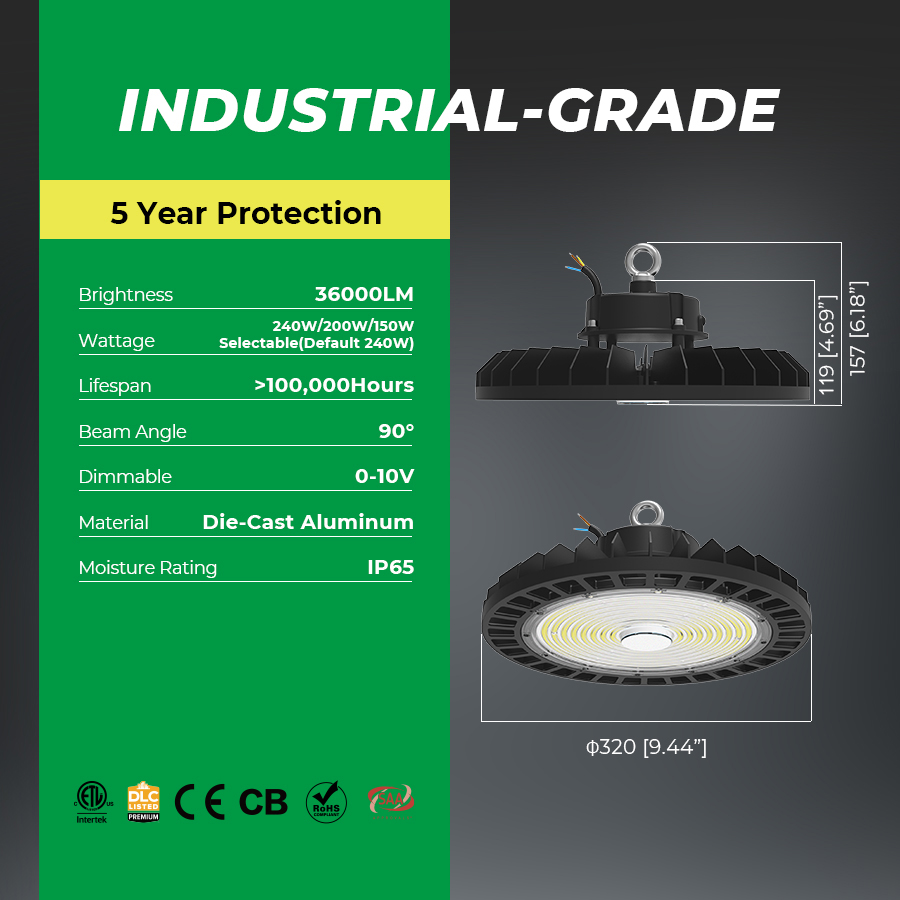

Dimension Draw 240W

Installation & Packing

Standard Installation: Hanging with Ring. Supports other installations like Mounting Bracket / Pendant Hook (requires ordering extra accessories).
Hanging Ring Installation step
Bracket Installation step

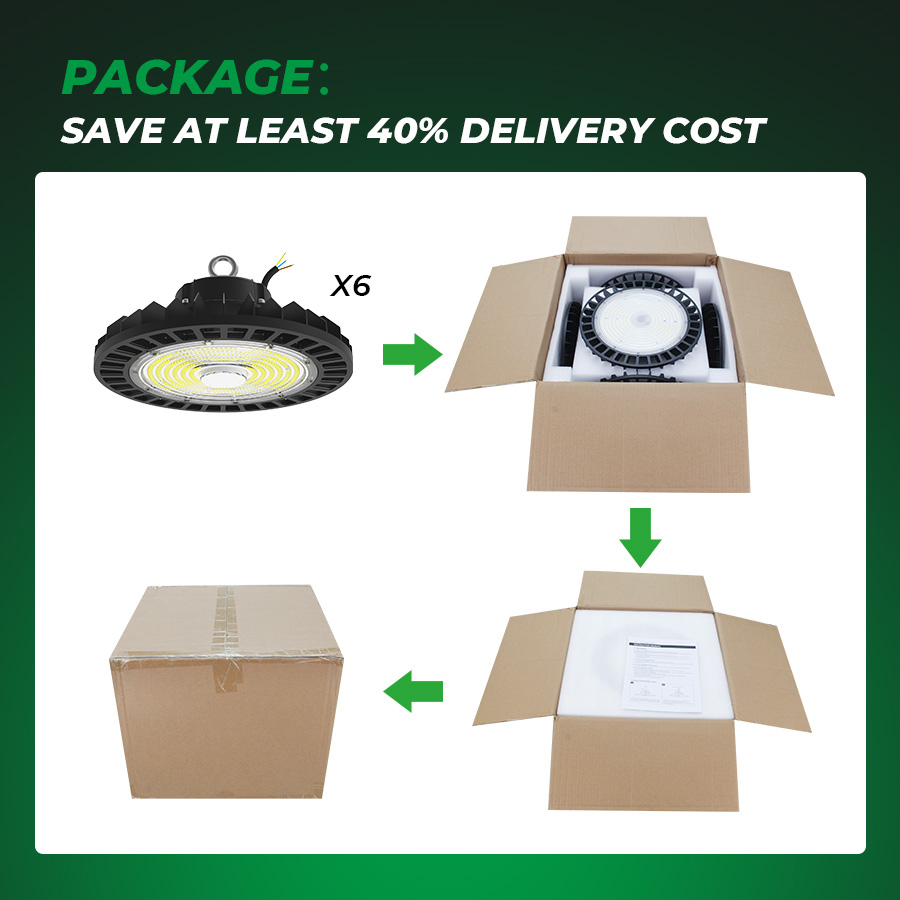

Packing carton design
Power Rating CTN Quantity Package Dimension Net Weight (N.W) Gross Weight (G.W)
150W / 120W / 90W Selectable 6 PCS / CTN 43 x 42 x 34 cm 10 KG 12 KG
240W / 200W / 150W Selectable 6 PCS / CTN 47 x 47 x 38 cm 12 KG 14 KG

Warm Tip: Recommended transportation modes and bulk shipping plans can be arranged via express/cargo partners to provide the most cost-effective solution based on orders.

Shipment boxes ready to load

Certifications

Safety and Efficiency Certificate
High Quality Certificate list

Factory & Production Overview

We are a professional, innovative LED lighting manufacturer. Established in year 2010, we have been in this area for over 10 years and developed many environmental-friendly, high-end LED products, which are welcomed by customers from all over the world, especially North America and Europe. Our featured products are LED high bay, wall pack, shoebox, flood light, LED panel light and some other outdoor lighting products with 5 years warranty. Main certificates include UL, ETL, DLC, CE, Rohs, TUV and so on.
Our factory spans a large production area and has passed the ISO9001 quality system. A strong R&D team pays great attention to designing new products. Experienced workers and advanced production machines guarantee good quality and fast production. Besides, we also have an excellent sales team who can offer you prompt replies as well as timely after-sales service.
To provide better service, localized warehouses have also been established to ensure high-efficiency delivery with low shipping costs. We devote ourselves to the LED outdoor lighting field and look for more business partners to join us!
LED Factory Production line

Frequently Asked Questions

Q1. Can I have a sample order for the LED high bay light?

A: Yes, we welcome sample orders to test and check product quality. Mixed samples are fully acceptable.

Q2. What is the expected lead time for shipping?

A: Samples typically require 1-5 days to prepare. Bulk orders and general production runs require approximately 1-2 weeks.

Q3. What kind of safety and quality certifications do you possess?

A: Our products are fully certified with industry-standard compliance markings, including CE, RoHS, ETL, cETL, DLC 5.1 Premium, CB, and SAA.

Q4. How do you ship the orders and how long does it take to arrive?

A: Smaller shipments are usually sent via International Express (3-7 days) or logistics parcels (15-20 days). Large-volume bulk orders are dispatched via Airline (5-7 days airport-to-airport) or Ocean Freight (20-40 days port-to-port).

Q5. Is it possible to print a custom brand logo on the light fixtures?

A: Yes. Please inform us formally prior to scheduling production and confirm the final graphic layout based on our initial pre-production sample.

Q6. How do you handle product warranty issues or faulty goods?

A: Throughout the 5-year warranty period, we will dispatch replacement lights with subsequent orders for low-quantity claims. For defective batches, we will arrange repairs and return them to you, or consult on a tailored solution depending on the specific situation.
