Features

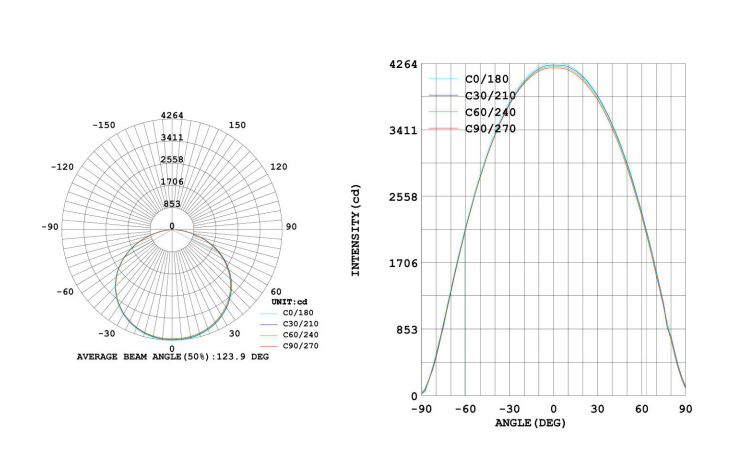

• Beam angle: 120 degrees.
• Aluminum die-casting heat sinks are optimal for heat dissipation.

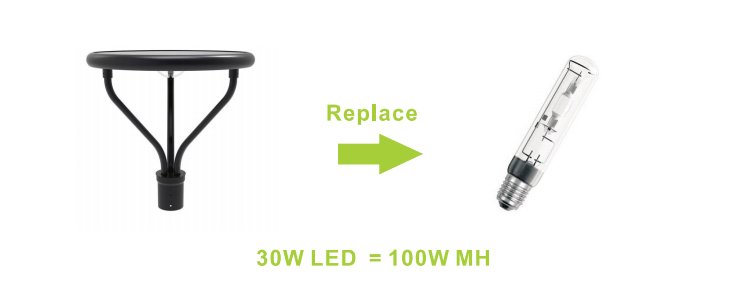

• Excellent alternative to replace conventional area lighting.
• Green, energy-saving, and long reliable life of 50,000 hours.
• No RF interference, no IR/UV radiation, and no mercury pollution.
• Wide color availability from 2700K to 6700K.
• Streamlined exterior design with a premium appearance.
• Environmentally friendly, saving 70% to 80% energy.
• Special circuit design allows each LED to work separately, preventing single broken LED impact.

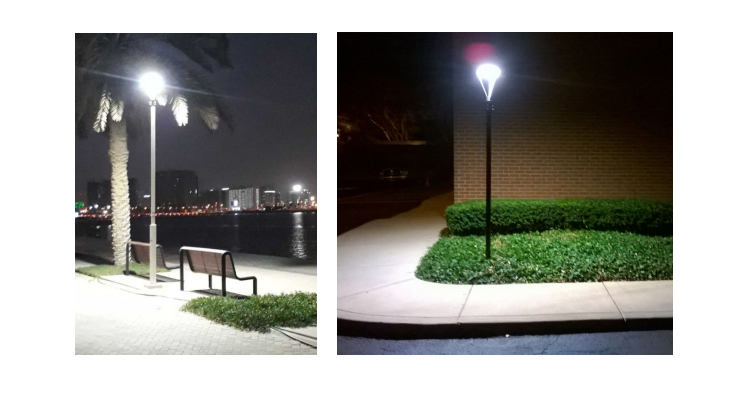

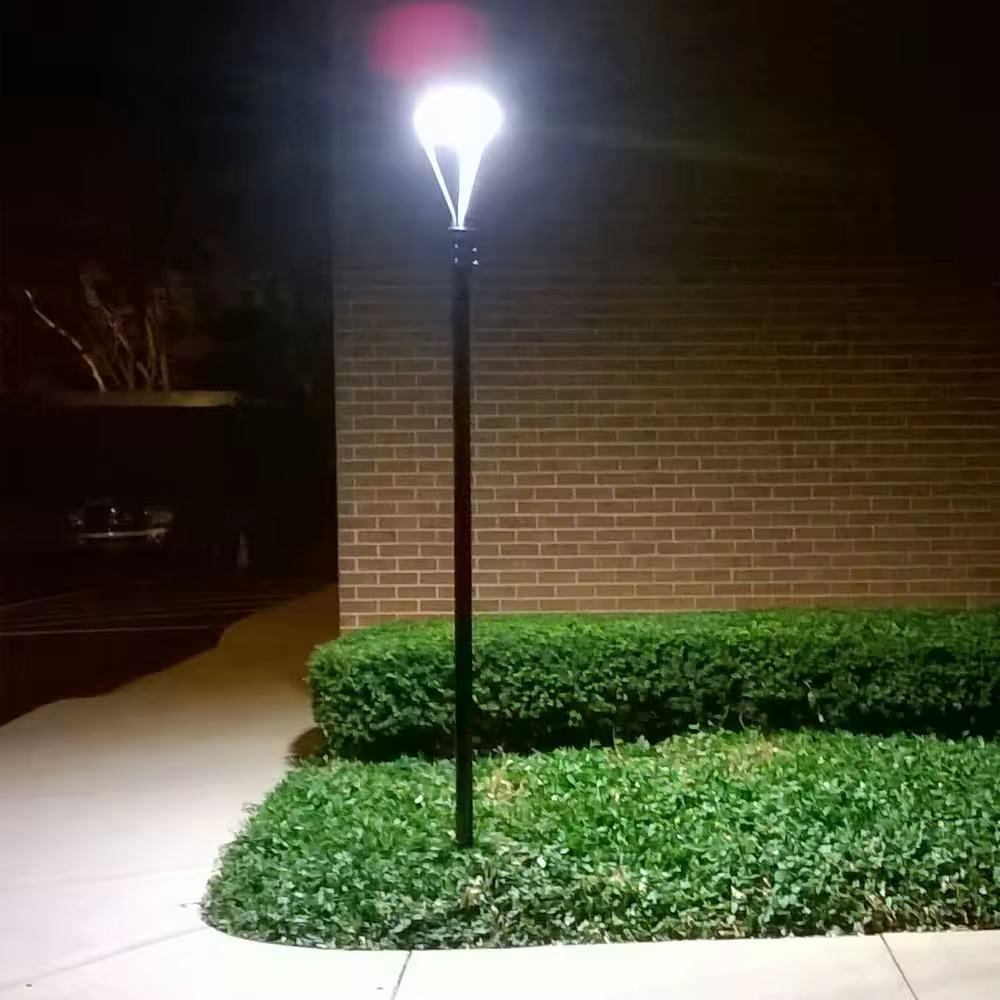

Application Scenarios

Designed for high-performance exterior illumination across a variety of settings:

Default Smart Settings

Timer Control & PIR Sensor Control:

• Phase 1 (4 hours): Auto-on in insufficient ambient light. 100% brightness when motion detected. Swaps to 30% brightness after 60s of no motion.
• Phase 2 (3 hours): 70% brightness upon motion. Swaps to 30% brightness after 60s of no motion.
• Phase 3 (3 hours): 50% brightness upon motion. Swaps to 30% brightness after 60s of no motion.
• Phase 4 (6 hours): 70% brightness upon motion. Swaps to 30% brightness after 60s of no motion.
• Daytime Auto-Off: Automatically shuts down when sensor detects daytime light levels.

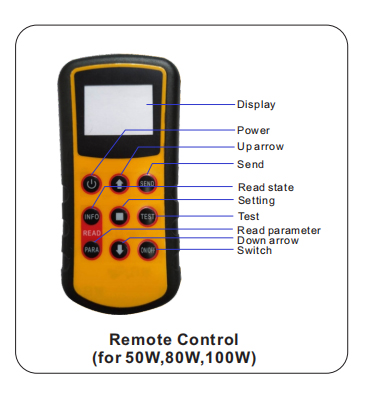

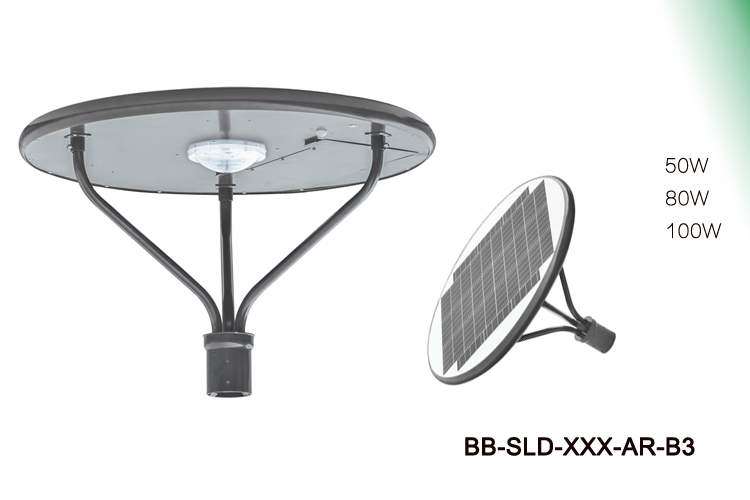

Note: IoT Smart Control and MPPT Smart Control are available in 20W, 25W, 40W, 50W, 80W, and 100W configurations.

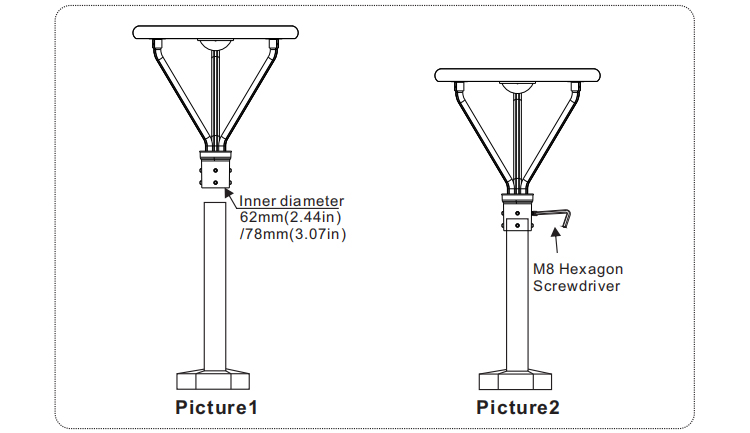

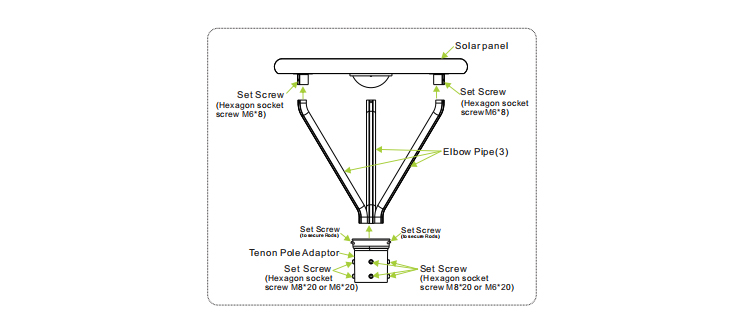

• Step 1: Always turn off the power source before starting the installation.
• Step 2: Align and secure the Tenon Pole Adaptor and the pole together using 6 screws.
• Step 3: Ensure all mounting screws are tightened properly to complete the install.

*Note: Screw types differ based on pole diameters.

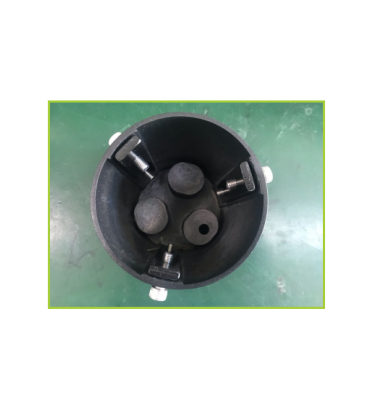

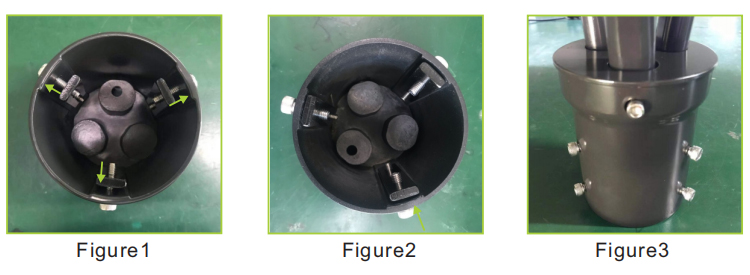

Detailed Steps for 62mm (2.44in) Tenon Pole Adapter:

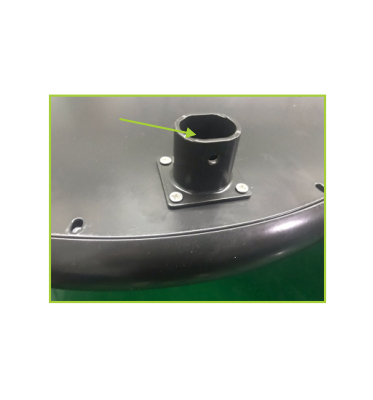

• Upon receipt, identify the 3 washers and 6 M6*20 screws (as in Figure 1). Pull the screws in the arrow direction.
• Place the fixtures onto the light pole once the screws and washers match the positions shown in Figure 2.

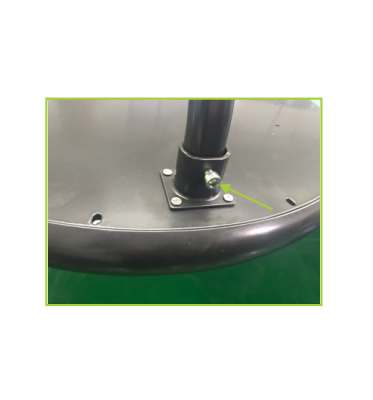

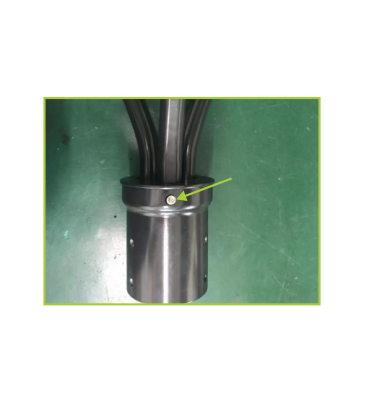

• Tighten all hardware firmly as shown in Figure 3.

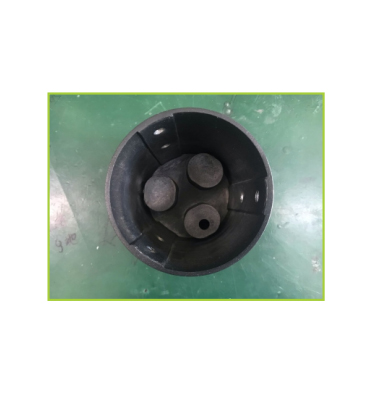

*If installing an 80mm (3.15in) adapter, use the 6pcs M8*20 screws instead. Washers and M6*20 screws are not required.
