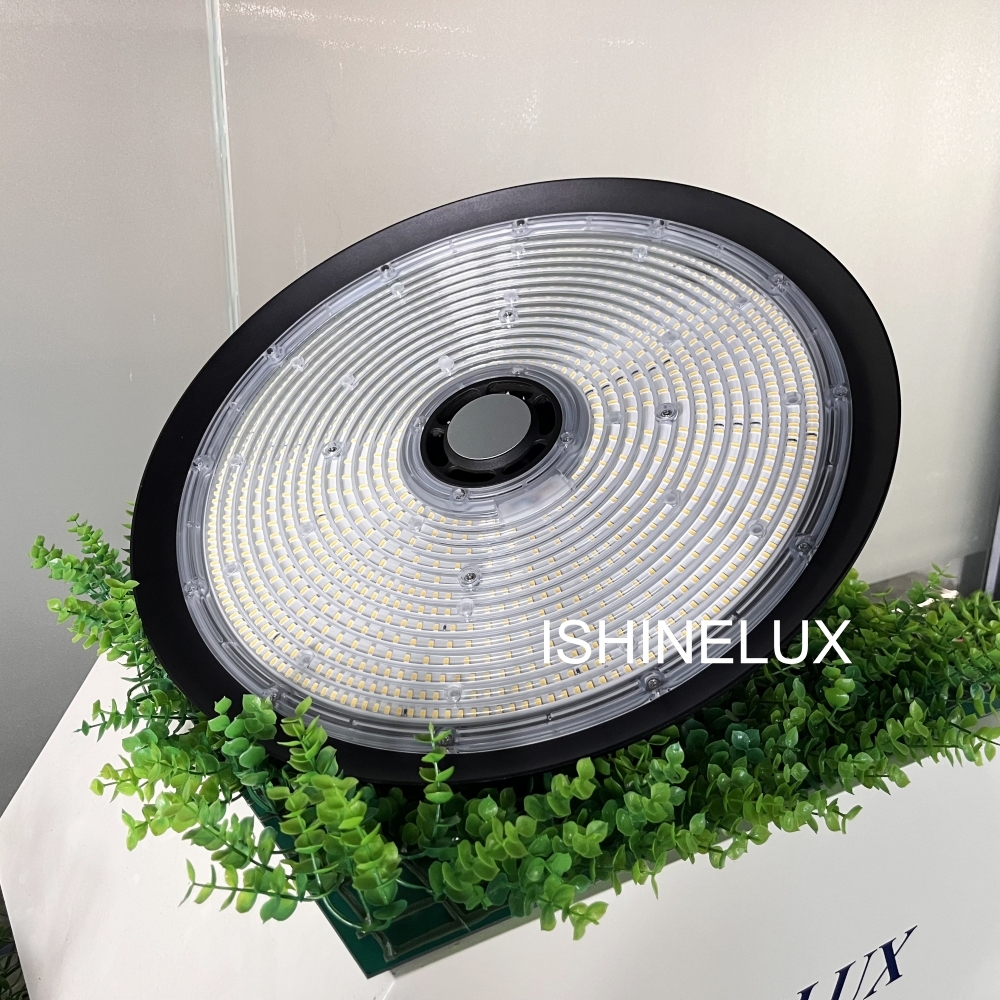

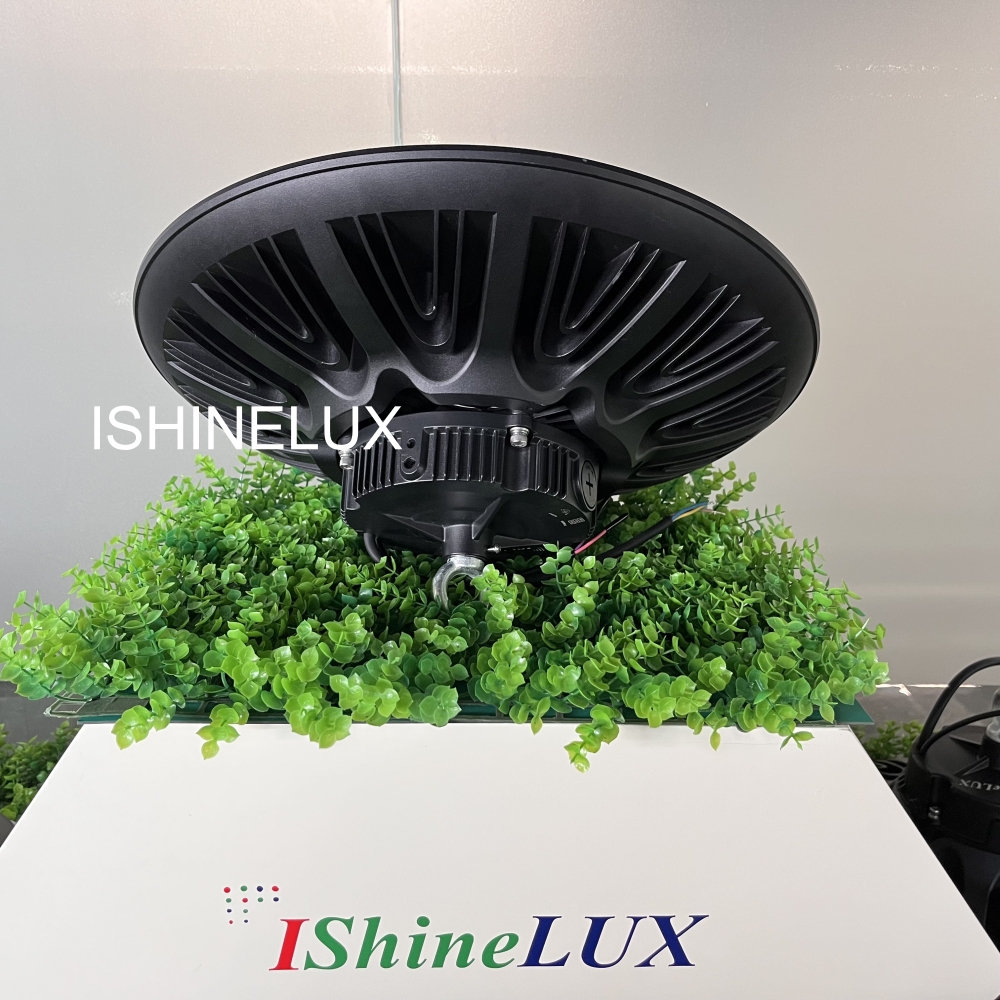

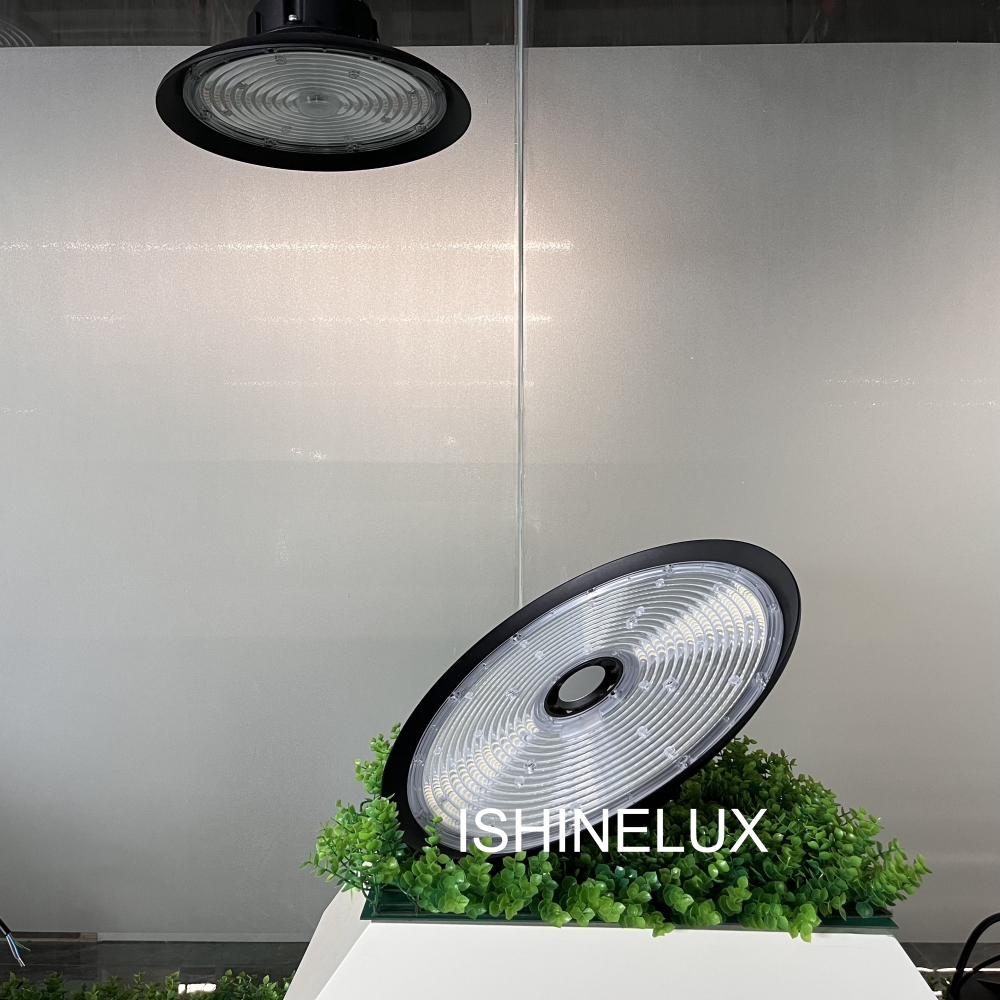

UFO LED High Bay Light 100W 150W 200W 300W 400W 500W High Power Factory Warehouse Lighting

Product Description

IP65 LED High Bay Light 60W 100W 150W 200W 240W 300W 400W 500W

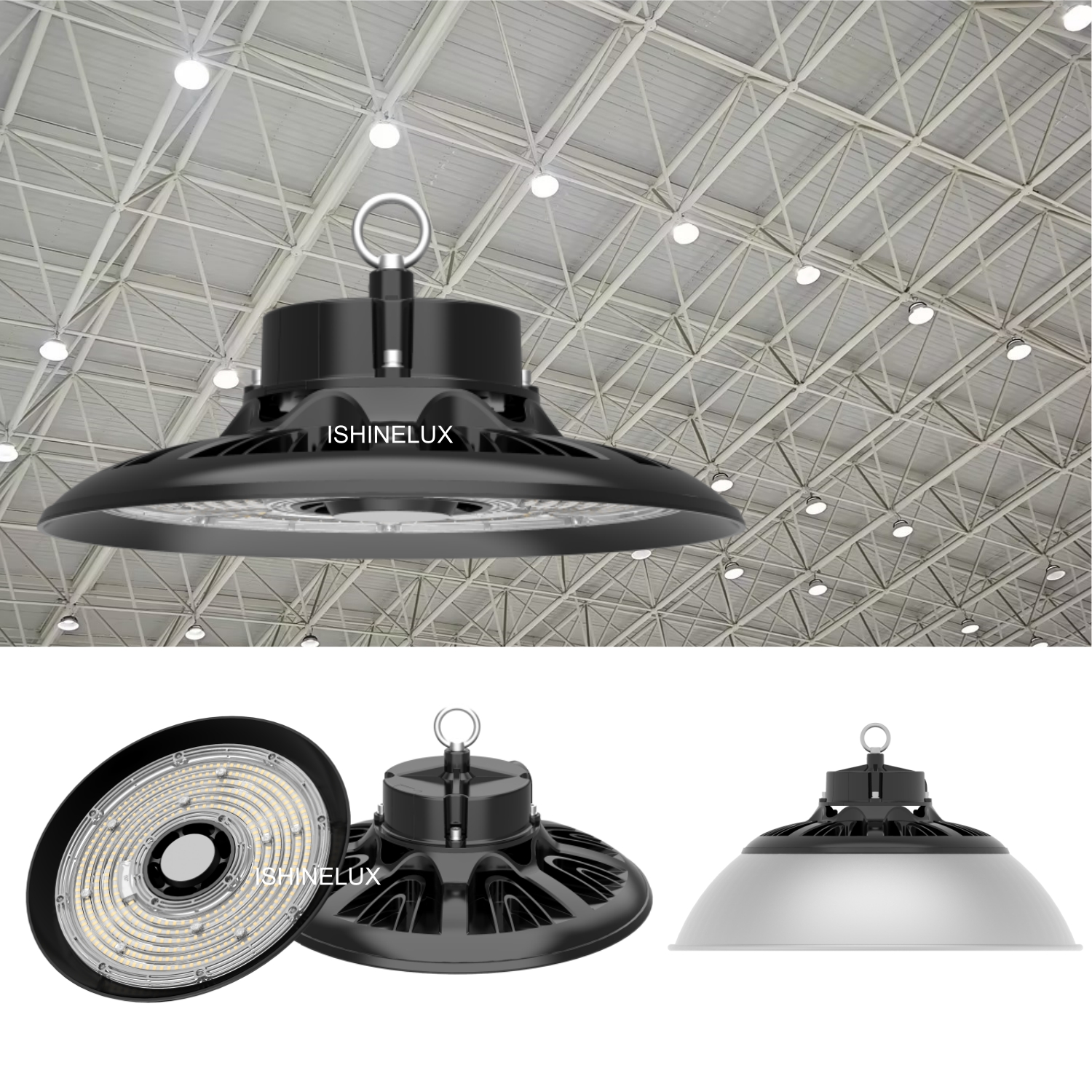

LED High Bay Light Product
Elegant HB18 High Bay Light are available in 60W, 100W, 150W, 200W, 240W, 300W, 400W and 500W
Up to 150lm/W, 170lm/W, 190lm/W
1-10V Dimmable & Power selectable
Optical UV resistant PC lens with 94% light transmittance, IK08
Die-casting technology by ADC12, excellent thermal management
Top brand LED chip and driver, ensure the product quality and lifetime
5Years/ 7Years warranty
Options: Motion Sensor (plug and play)
Options: 3CCT & Power Adjustable
Specification
Product Specification (Elegant HB18 UFO High Bay Light 60W-500W)
60W ø233*145mm
100W ø260*145mm
150W ø287*147mm
200W ø305*149mm
240W ø305*149mm
300W ø342*168mm
400W ø447*178mm
500W ø447*178mm
Input Voltage 100-277VAC, 50/60Hz
Light Efficiency 150lm/W (170lm/W, 190lm/W available)
CCT 3000K, 4000K, 5000K, 5700K, 6500K
CRI 80Ra
Beam Angle 60°, 90°, 120° (60W-300W), 40°/60°/90° (400W-500W)
Solution Options 1-10V (Standard), Emergency, 3CCT & 3Power
IP Rating IP65
IK Rating IK08
Warranty 5Years

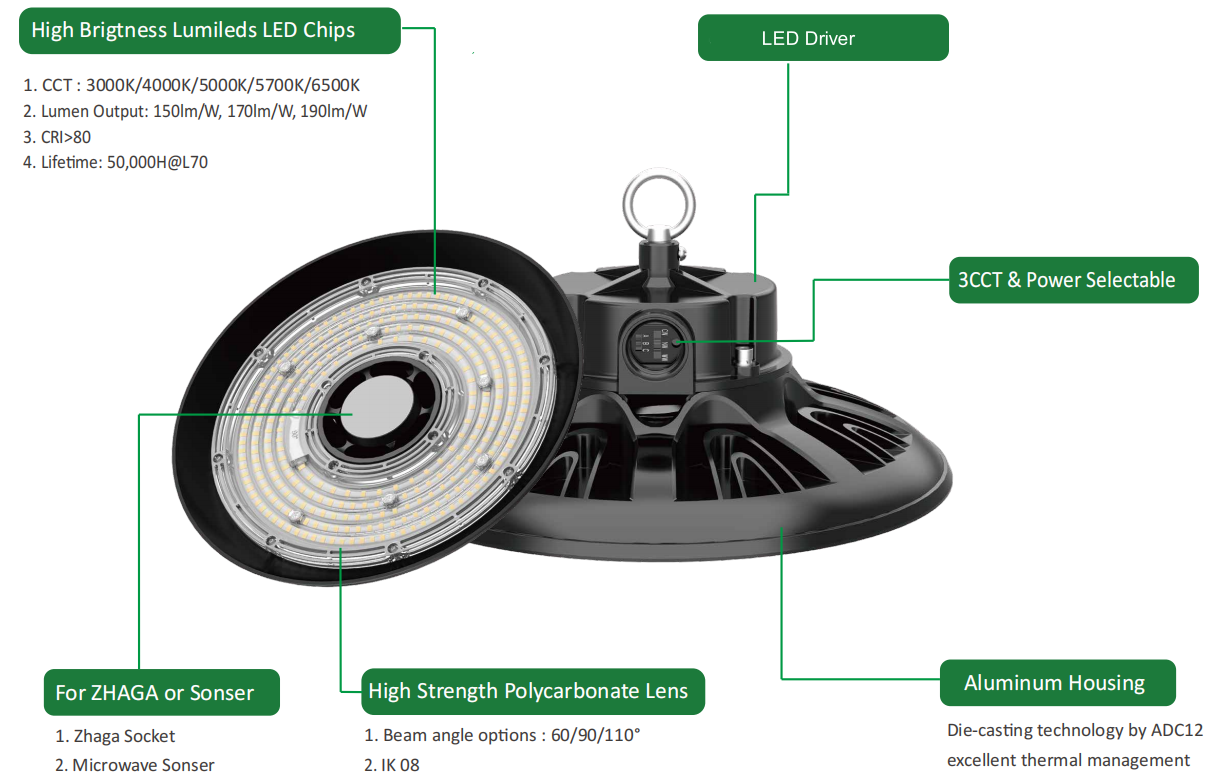

Specification diagram 1

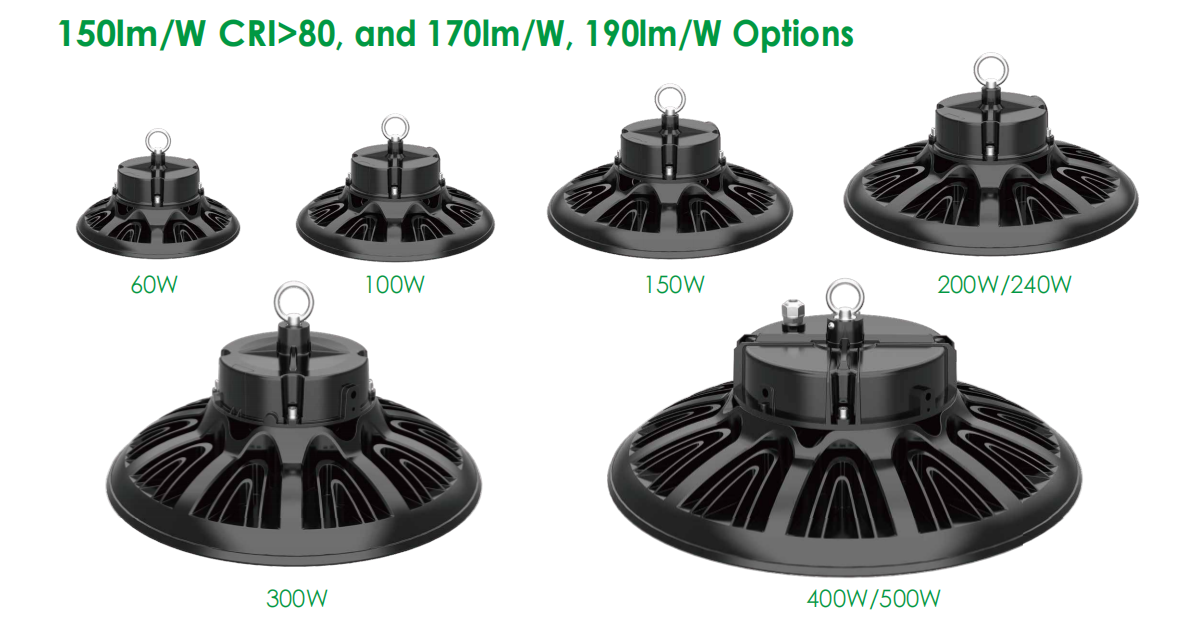

Specification diagram 2

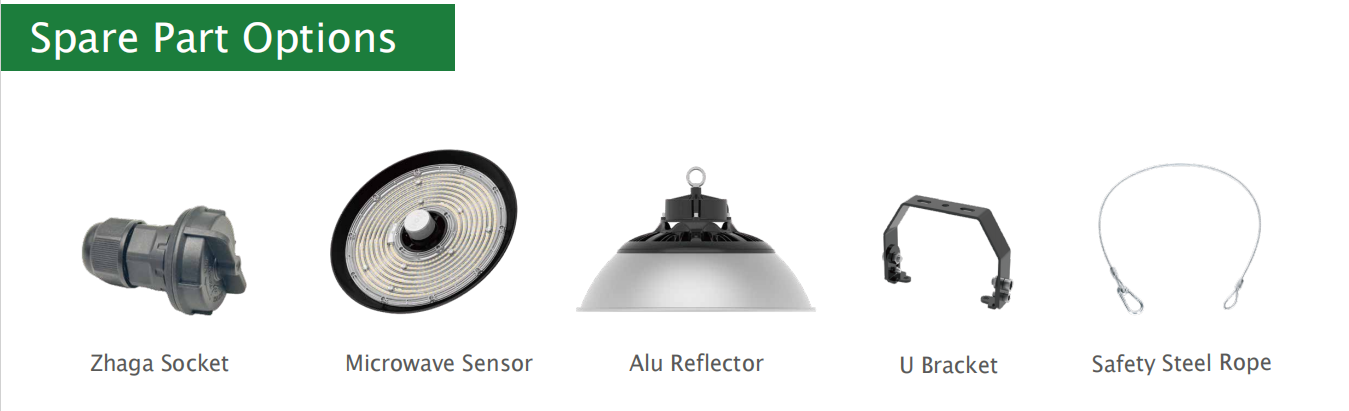

Specification diagram 3
Details Images
Detail presentation 1

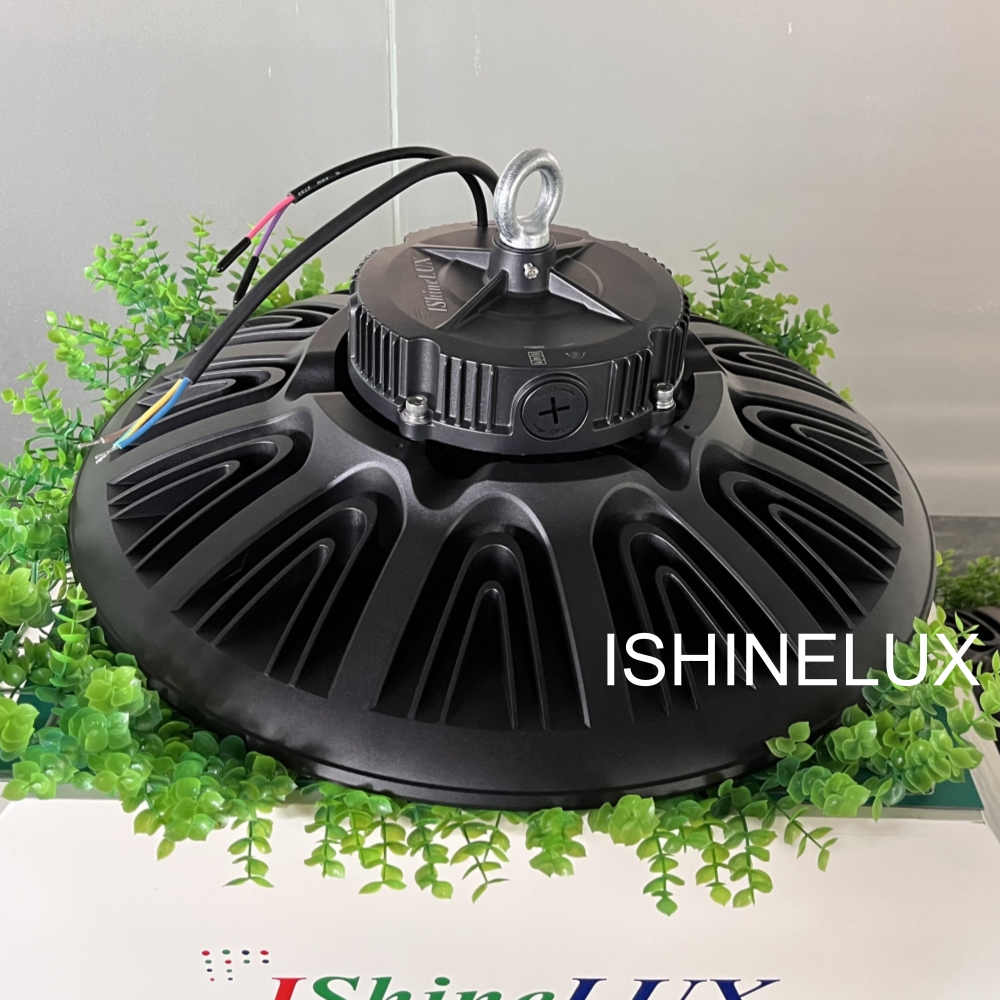

Detail presentation 2

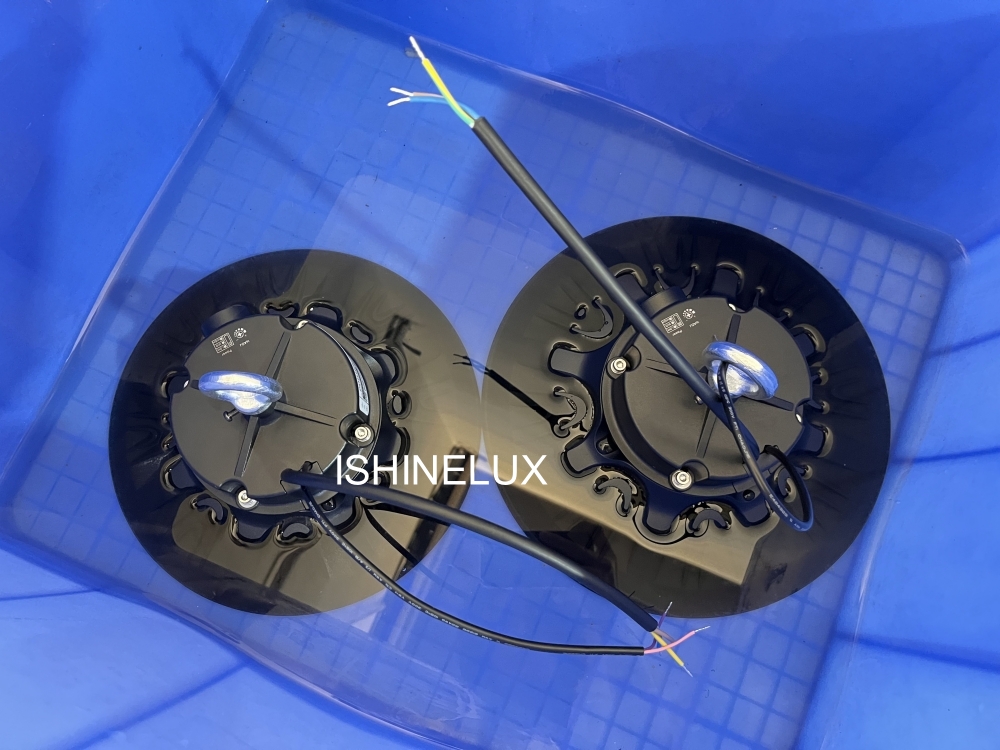

Detail presentation 3

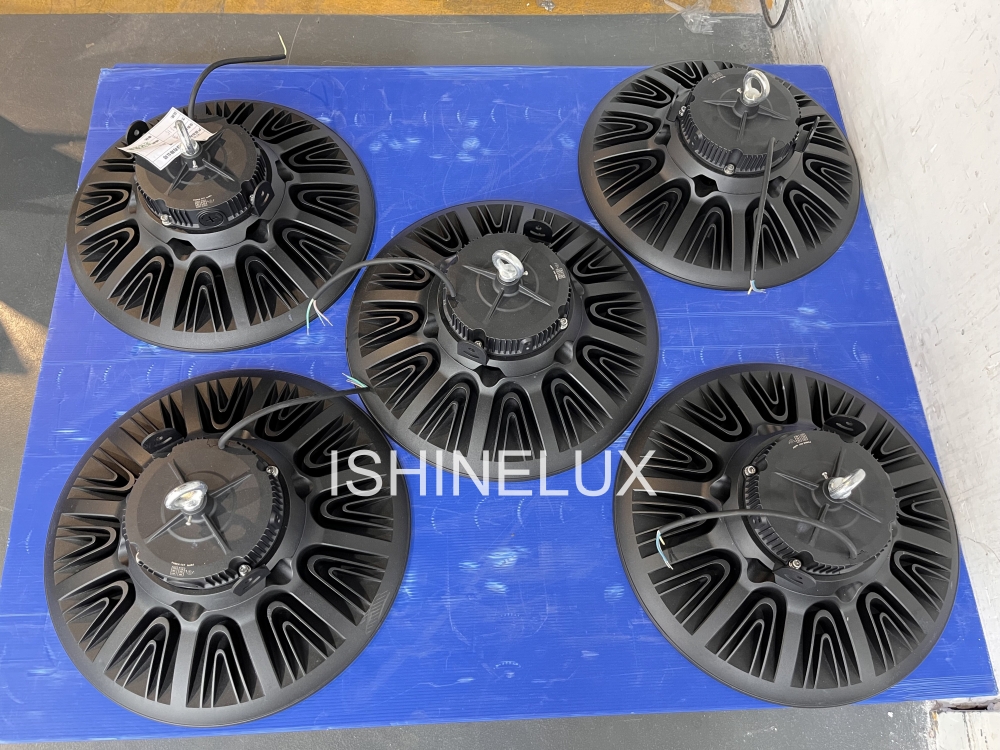

Detail presentation 4

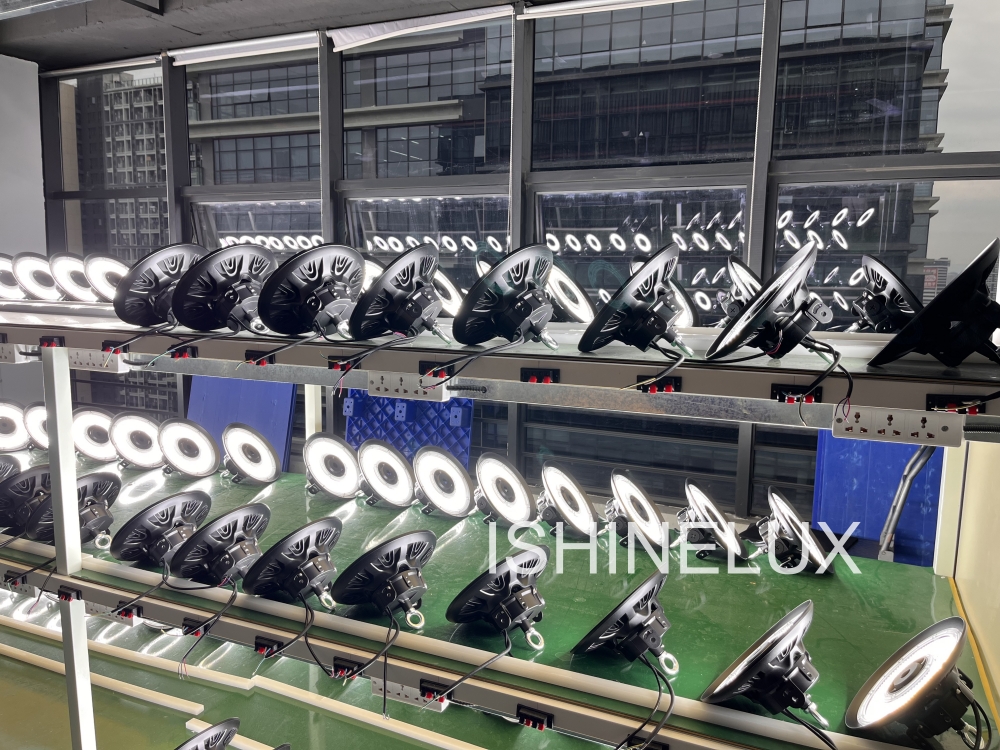

Detail presentation 5

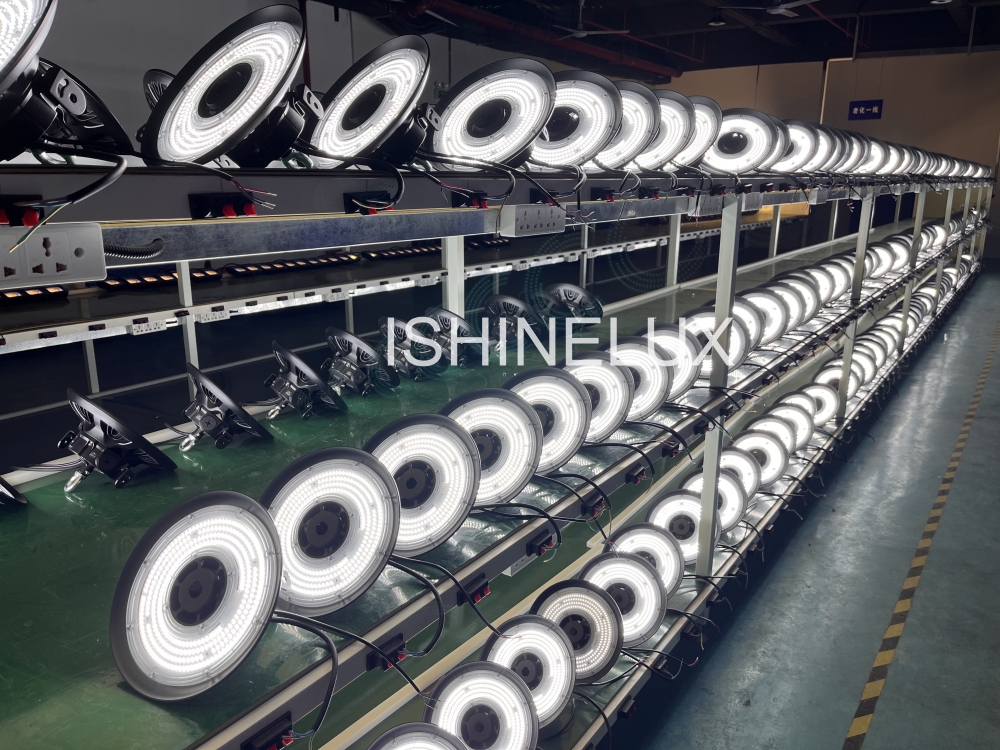

Detail presentation 6

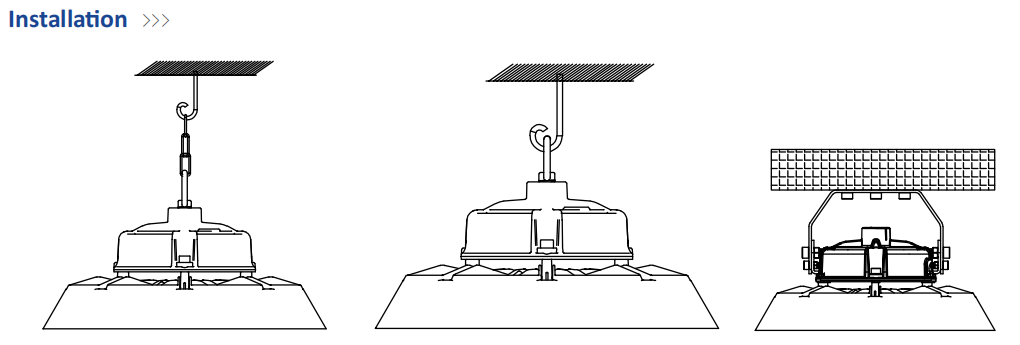

Installation
Installation guide
Application Scenario

It can be widely applied in Warehouse, Factory, Workshop, Plant, Supermarket, Logistics Center, Gas Station, Indoors Stadium Light, Highway Toll Station, etc.

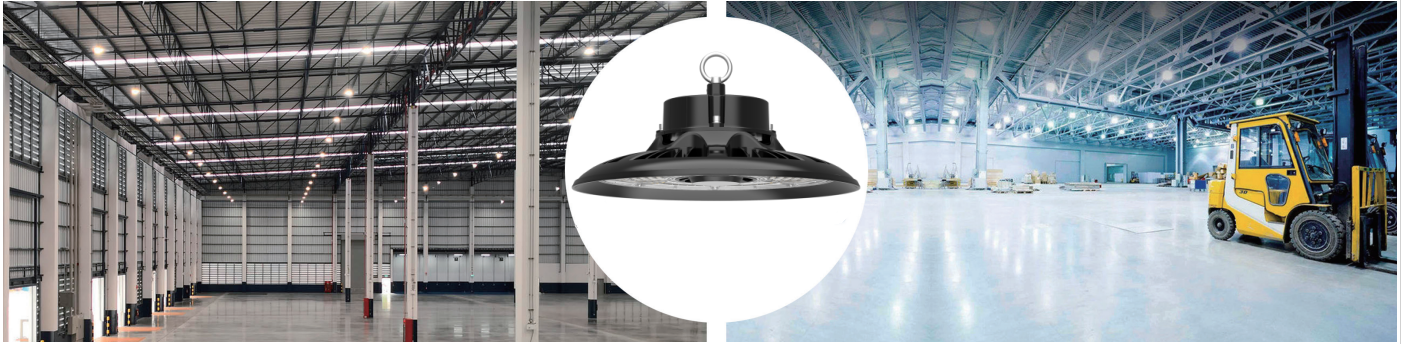

Application scenarios
Company Profile

Let our LED lights up your space. Our LED lighting products cover UFO high bay, linear high bay, sports/ high mast light, flood light, tunnel light, street light, parking lot light, explosion-proof light and high temperature light. We have a strong R&D and sales team back up for your outdoor led lighting project. Many series led lights are available for your choose. We provide OEM/ODM service. Looking for long term strategic business partners. Welcome to join us.

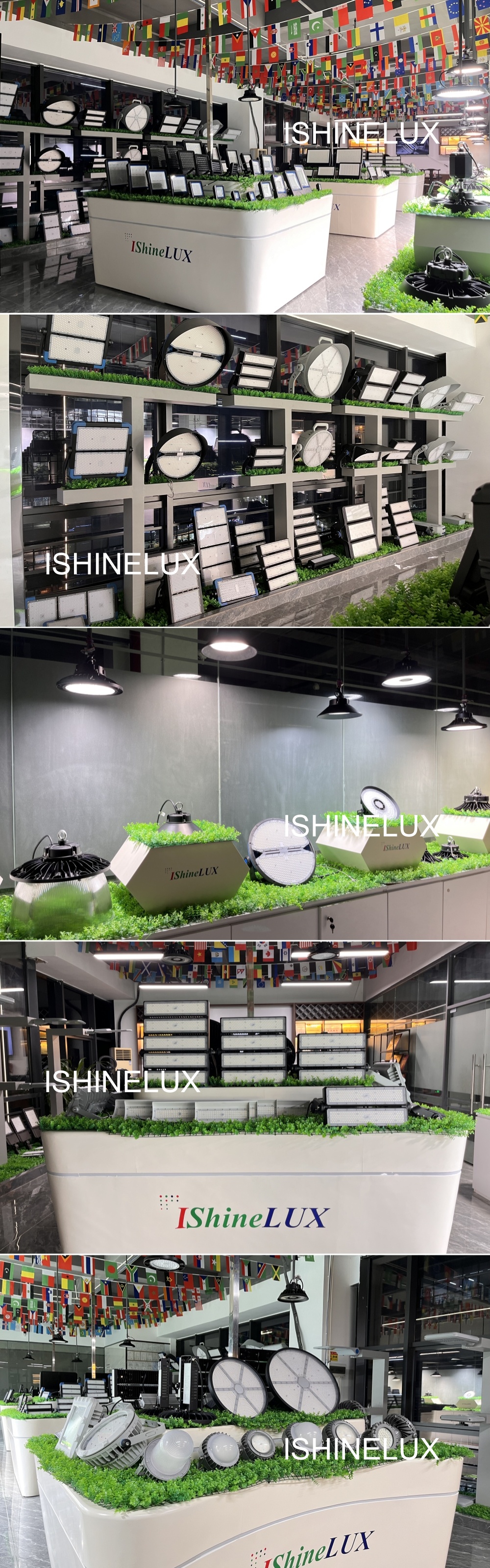

Company presentation 1

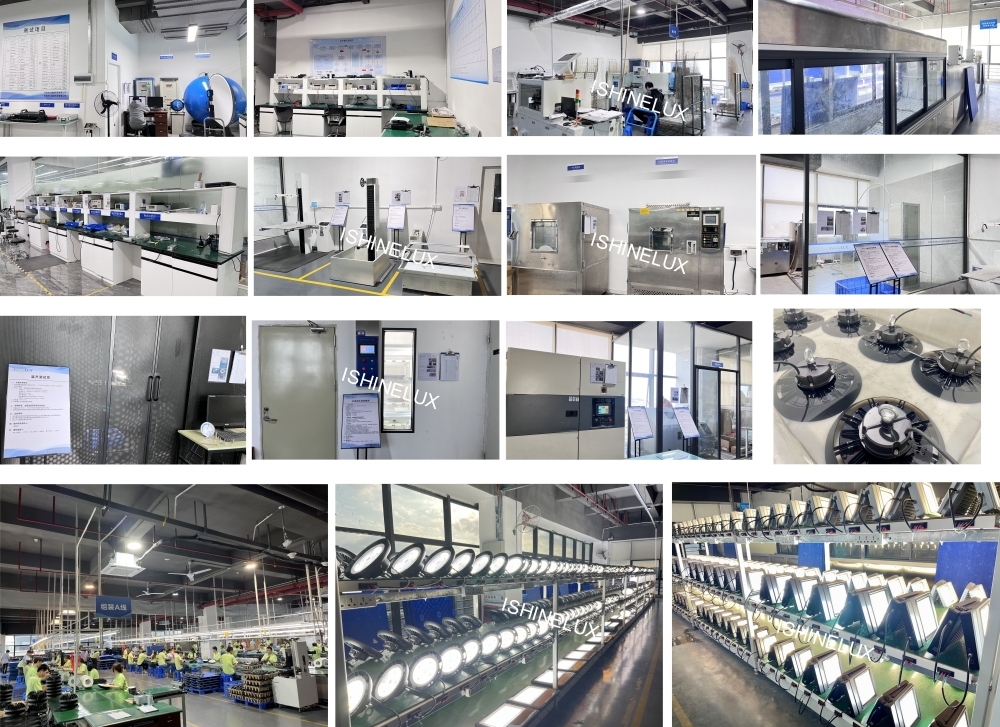

Company presentation 2

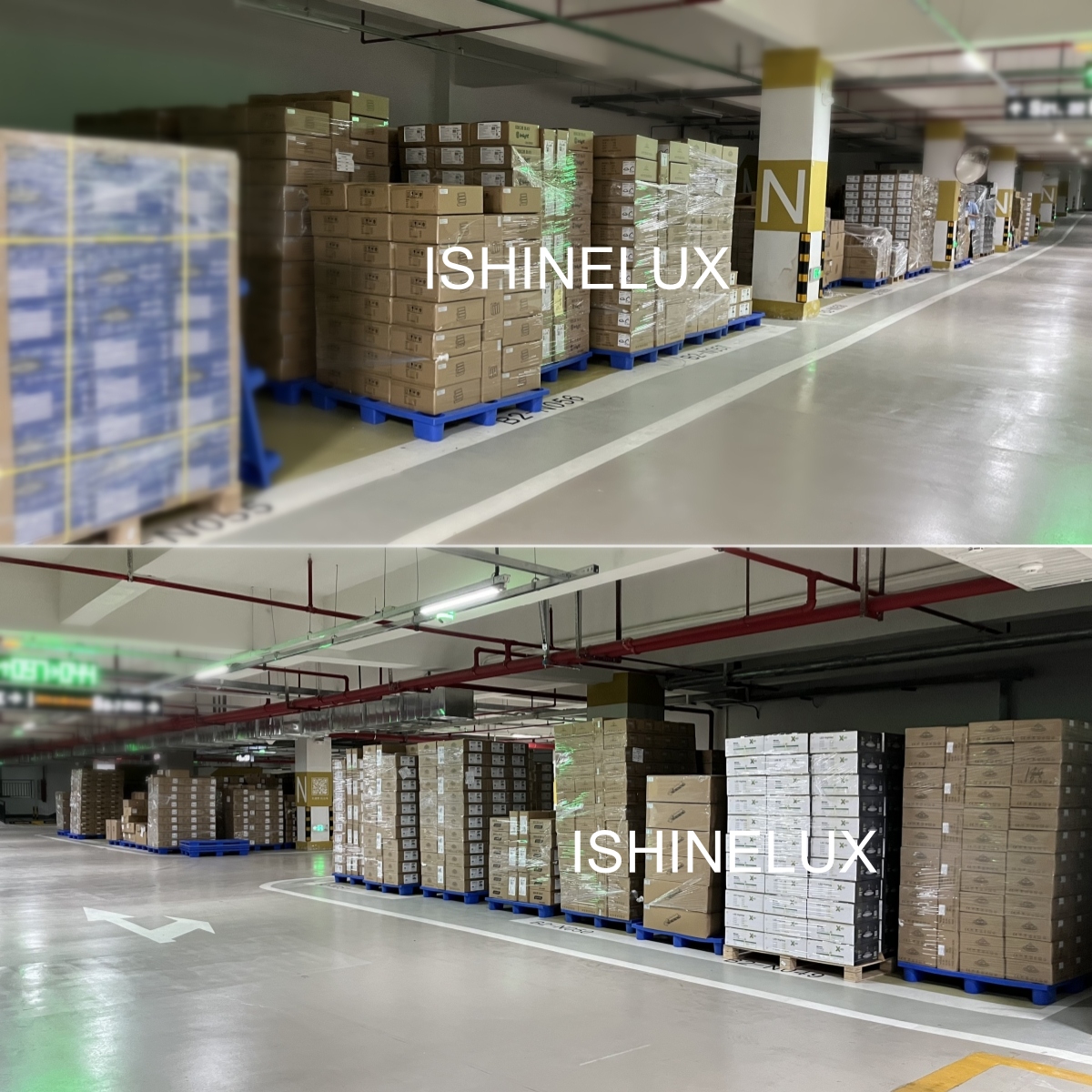

Company presentation 3
FAQ
Q1 What is included in the customized LED product range?
- Sports & High Mast Light: 120W-2400W - Flood Light: 10W-500W - UFO High Bay Light: 100W-300W - Linear High Bay Light: 50W-200W - Street Light: 30W-240W - Tunnel Light: 50W-600W - Explosion-proof Light: 50W-240W - High Temperature Light: 150W-800W
Q2 What are the primary applications of these products?
- Baseball Field, Basketball Court, Cricket Ground, Golf Field, Football Stadium, Soccer Field, Tennis Court - Airport, Bridge, Wharf, Tower Crane, Tunnel - Resident Home, Garden, Park, Commercial Building, Garage - Warehouse, Logistic Center, Shopping Mall, Factory, Cold Storage - Street and Roadway, Billboard, Parking Lot - Landscape and Others
Q3 How is the quality control (QC) system structured?
We have implemented ISO9001 and ERP Management. All of our products pass strict QC processes before shipment to ensure top quality.
Q4 What is the typical lead time for orders?
Samples require 3-7 days, while mass production typically takes 10-20 working days.
Q5 What shipping options are available?
We support shipping by express (FedEx, DHL, UPS, EMS, etc.), air freight, and sea freight as optional choices.
Q6 What is the warranty period for the lights?
We offer a comprehensive 5 to 7-year warranty on our products.
