| Technical Parameters | |
|---|---|
| Model | FGD150H5B |
| LED Brand | Lumileds 3030 |
| Driver Brand | Meanwell |
| Nominal Wattage | 150W |
| LED Module Quantity | 3 modules |
| Input Voltage | 100-240/277VAC |
| Power Efficiency | >90% |
| Power Factor | >0.95 |
| Lamp Rated Luminous Efficiency | >125 lm/w |
| Lamp Rated Lumen Output | 18,750 lm (Lumen tolerance +/- 5%) |
| Color Rendering Index | Ra>70 |
| Color Temperature | 3000K, 4000K, 5000K or 5700K |

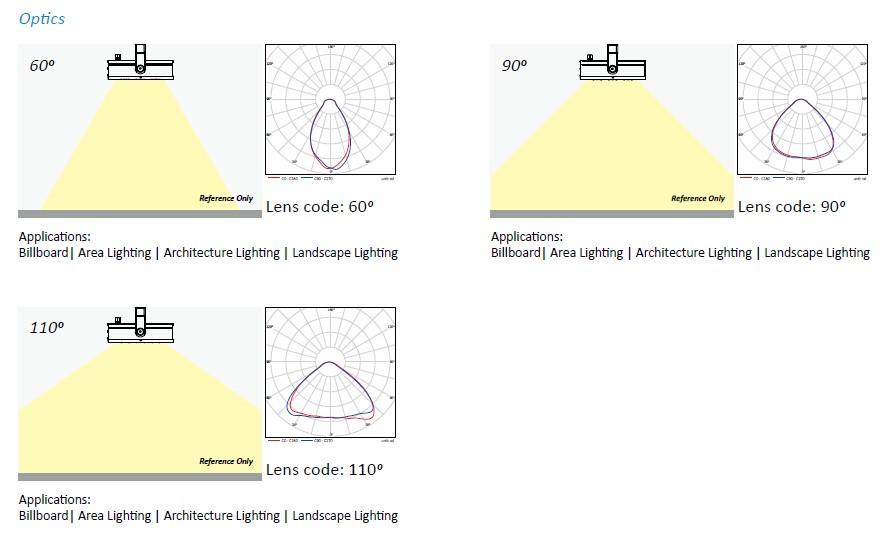

| Photometric Type | 60, 90, 110 degrees |
| Optimal Operating Temperature | 25°C |
| Storage Temperatures | -40°C ~ +70°C |
| Working Environment | Between -40°C ~ +50°C, 10% ~ 90%RH |
| Total Harmonic Distortion | < 10% |
| Lumen Maintenance | > 75,000 hours - L70, @25 °C (77 °F) |
| Body and Shell Materials | Anodized Aluminum |
| IP Rating | IP66 with test report |
| IK Rating | IK10 with test report |
| Certification | CE, ROHS, ISO9001, ISO14001, LM80 |
| Optional Function | 1-10V DC or PWM Signal or Resistance Dimming / Timer/Photocell Control |
| Warranty | 7 years |
| Packing Details | |
| Fixture Dimension | 312 x 270 x 1263 mm |
| Fixture Weight | 4.6 kg / 10.1 lbs |
| Packing Dimension | 430 x 370 x 200 mm |
| Packing Weight | 5.4 kg / 11.9 lbs |

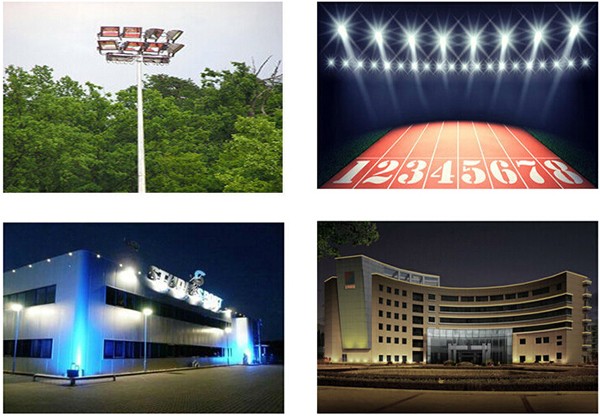

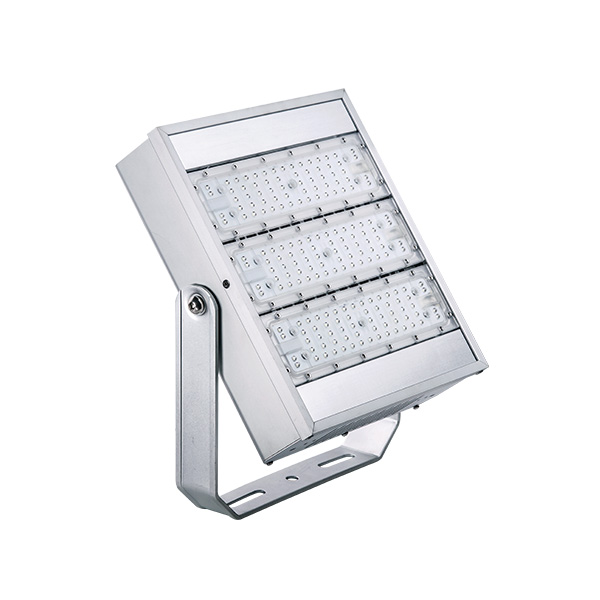

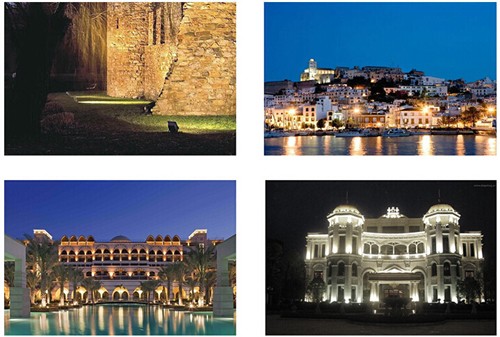

This heavy-duty 150W LED flood lamp is specifically designed for outdoor lighting requirements, including tunnel lighting, municipal highways, outdoor sports areas, building facades, and large industrial yards.

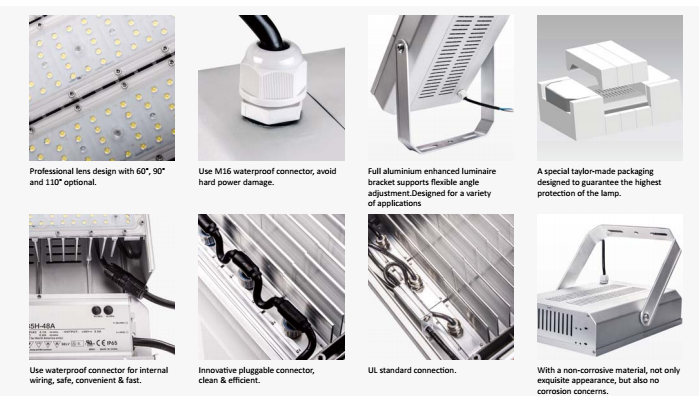

The lamp body is constructed from premium anodized aluminum which offers excellent corrosion resistance. Additionally, it features an IP66 waterproof rating and an IK10 impact protection certification, assuring safety and stable performance during severe weather conditions.
Yes, this flood light supports optional smart controls including 1-10V DC, PWM Signal, and Resistance Dimming, as well as integrated Timer and Photocell control systems to maximize energy savings.
Equipped with Lumileds 3030 LEDs and a Meanwell driver, this fixture achieves a high rated luminous efficiency of over 125 lm/W, delivering a total rated lumen output of 18,750 lumens.
This outdoor LED flood lamp is backed by an industry-leading 7-year manufacturer warranty, ensuring long-term reliability and peace of mind for public and commercial installations.
