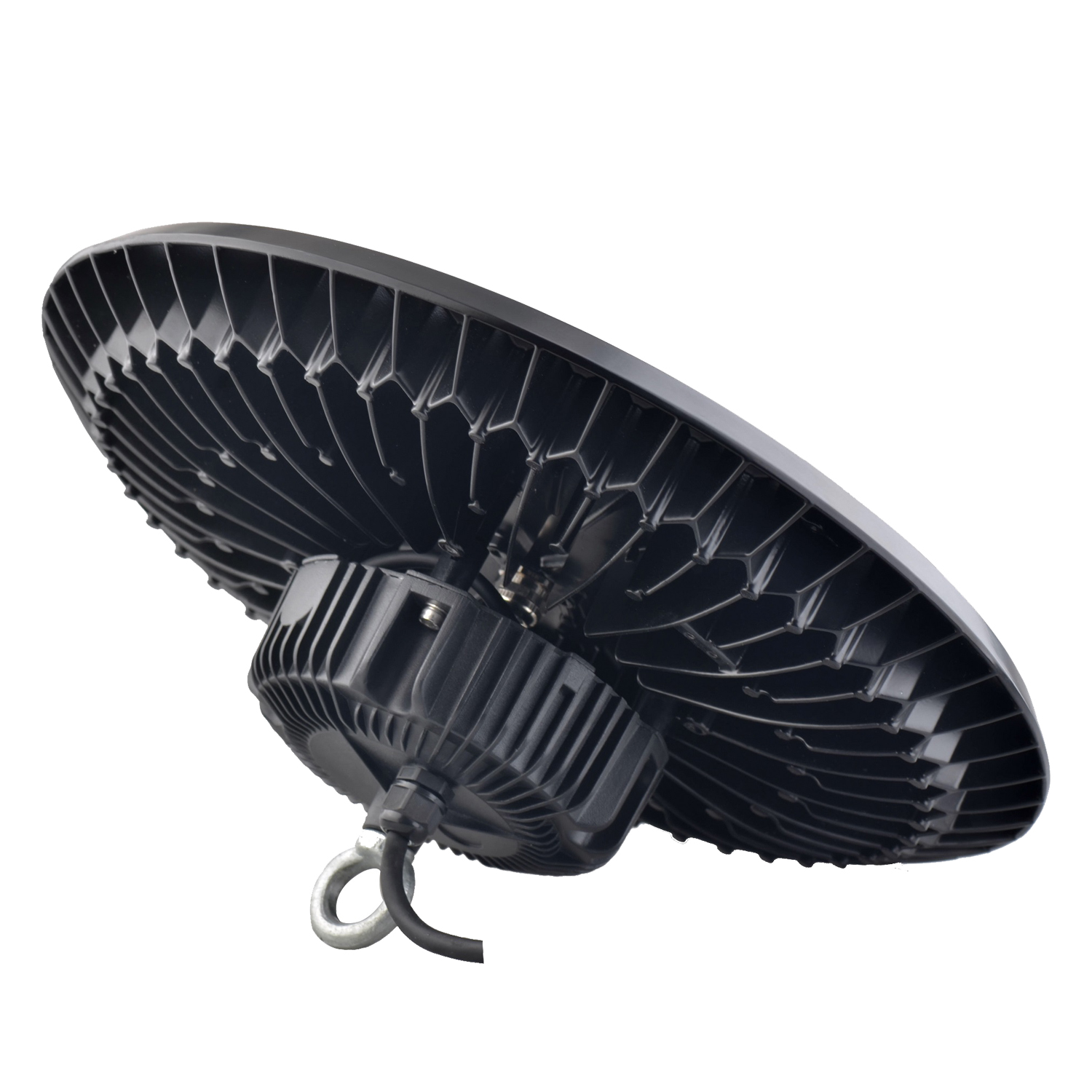

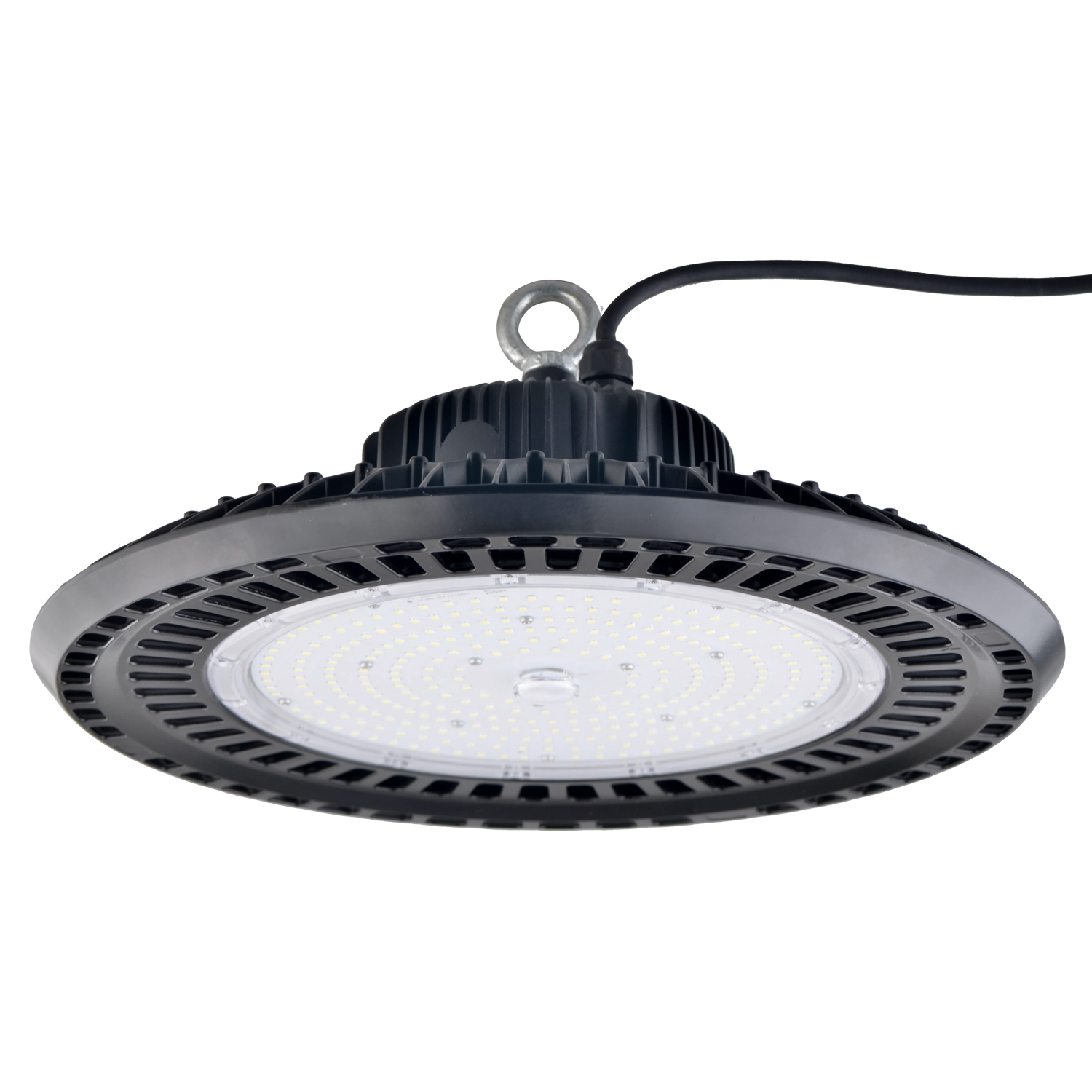

Factory Direct Led UFO High Bay Light 60W 100W 150W 200W 240W 300W Led UFO Highbay Light
Factory Direct Led UFO High Bay Light 60W 100W 150W 200W 240W 300W Led UFO Highbay Light
Factory Direct Led UFO High Bay Light 60W 100W 150W 200W 240W 300W Led UFO Highbay Light
Factory Direct Led UFO High Bay Light 60W 100W 150W 200W 240W 300W Led UFO Highbay Light
Factory Direct Led UFO High Bay Light 60W 100W 150W 200W 240W 300W Led UFO Highbay Light
1 / 5
Factory Direct Led UFO High Bay Light 60W 100W 150W 200W 240W 300W Led UFO Highbay Light
Factory Direct Led UFO High Bay Light 60W 100W 150W 200W 240W 300W Led UFO Highbay Light
Factory Direct Led UFO High Bay Light 60W 100W 150W 200W 240W 300W Led UFO Highbay Light
Factory Direct Led UFO High Bay Light 60W 100W 150W 200W 240W 300W Led UFO Highbay Light
Factory Direct Led UFO High Bay Light 60W 100W 150W 200W 240W 300W Led UFO Highbay Light

Factory Direct Led UFO High Bay Light 60W 100W 150W 200W 240W 300W Led UFO Highbay Light

Send Inquiry

Product Description

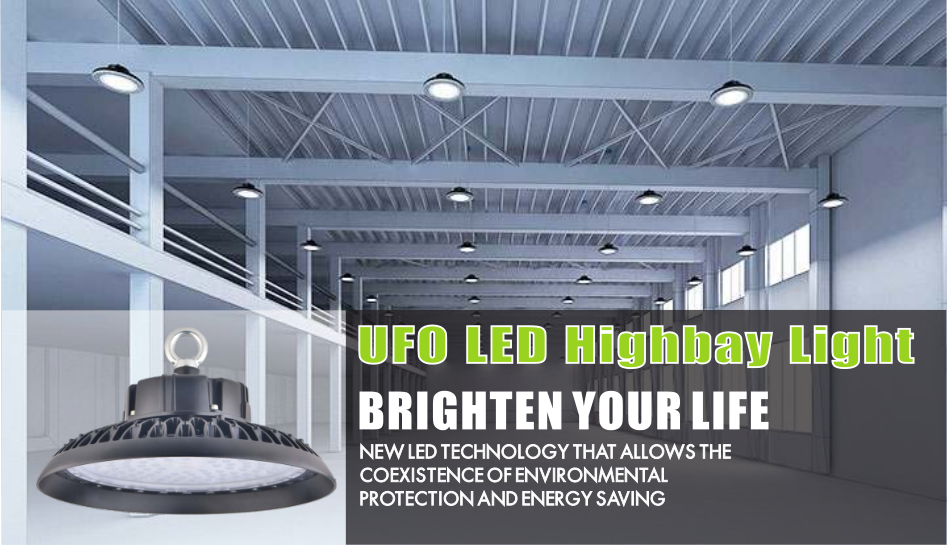

Product details overview

Product details

Power 60W 100W 150W 200W 240W 300W
Model BB-GKD-60W-E1-DR1 BB-GKD-100W-E1-DR1 BB-GKD-150W-E1-DR1 BB-GKD-200W-E1-DR1 BB-GKD-240W-E1-DR1 BB-GKD-300W-E1-DR1
Replacement HPS 200W HPS 300W HPS 400W HPS 600W HPS 800W HPS 1000W
Luminous Flux 7800lm 13000lm 19500lm 26000lm 31200lm 39000lm
Light Source SMD LED
Luminous Efficacy 130lm/W
IP 65
Voltage 100-277VAC/50-60HZ
CRI 85
Control System APP, remote control, touch screen, light control and other control options available
Operation Temp. -40 to +45℃
CCT 2700K SW/3000K WW/4100K NW/5000K DW/5700K CW
Life Span 50,000 hours at 25℃
Dimming Dimmable
Accessories Different installation accessories: A - Ring mounting; B - Bracket mounting
Beam Angle 120° (transparent, matte) 60° 90° (lens)
PF >0.95
Cover Transparent, matte, lens available
Warranty 5 Years

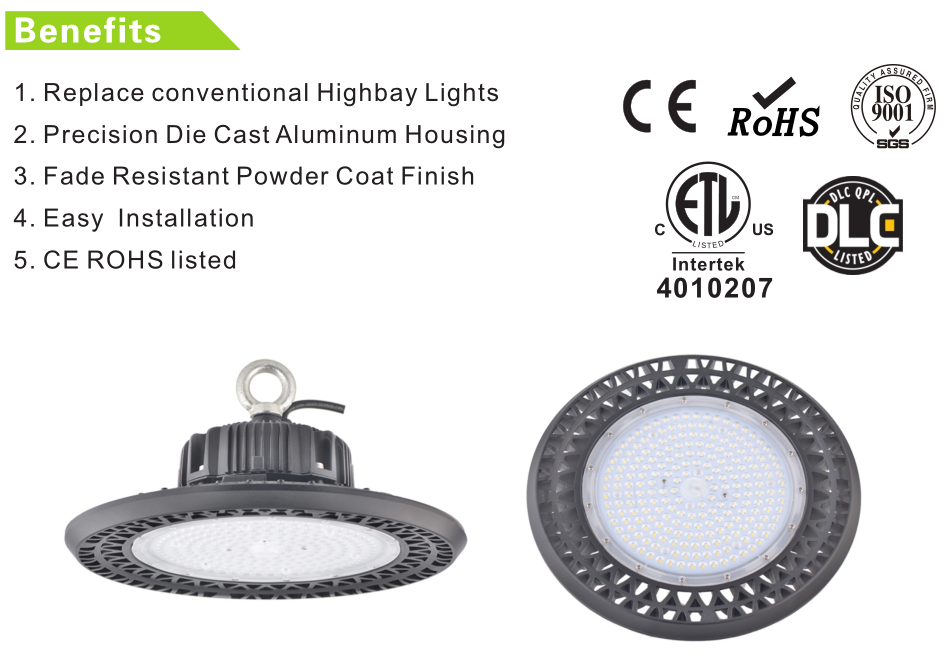

Advantages

  • Replace conventional high bay light
  • Precision die cast aluminum housing
  • Fade resistant powder coat finish
  • Easy installation
  • With a microwave sensor in the middle of the lamp
Advantages visual description

Features

  • Beam angle : 60 / 90 / 120 degrees.
  • Aluminum die casting heat sinks is good for heat dissipation.
  • It's major to replace the conventional high bay light.
  • Green ,energy saving,long and reliable life of 50,000 hours.
  • No RF interference ,no IR / UV radiation,no mercury pollution.
  • Wide colour availability in degrees Kelvin(K),2700-6700K.
  • Streamline exterior design,beautiful appearance.
  • Environment friendly ,energy saving (70%~80%).
  • Special circuit design,each LED work separately,avoiding the single broken LED influence problem.

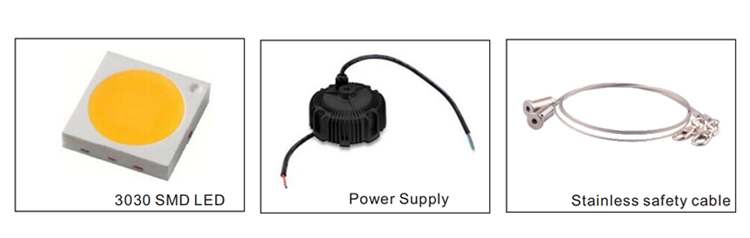

Features visualization

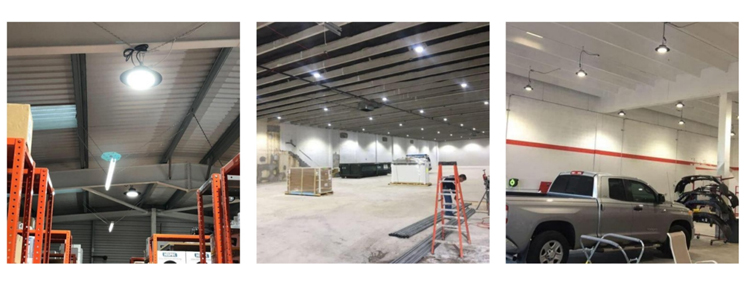

Application

  • 1. Parking area lighting
  • 2. Ceiling lighting
  • 3. Warehouse lighting
  • 4. High / low bay lighting
Application diagram

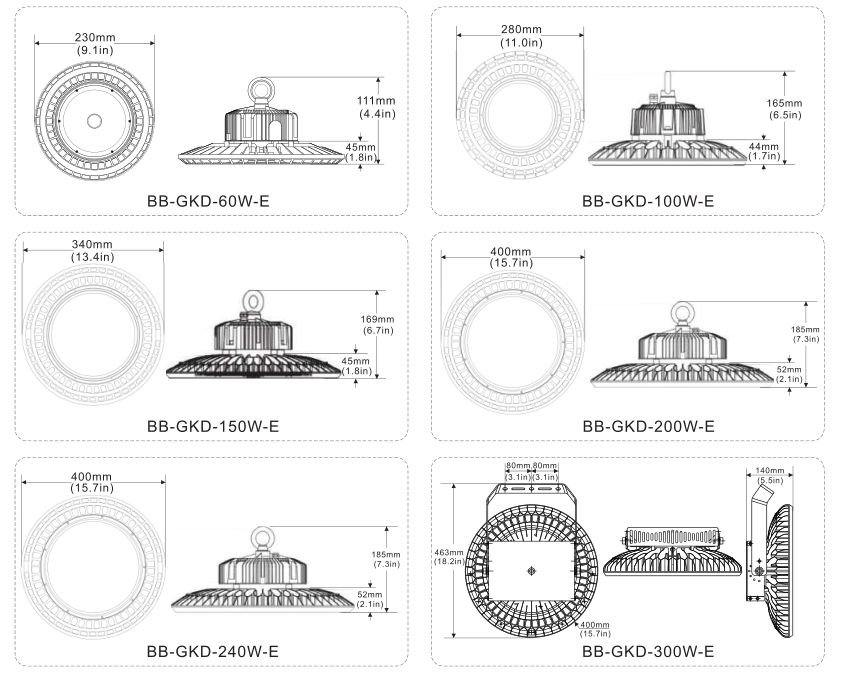

DIMENSIONAL DRAWING

Dimensional Drawing dimensions specifications

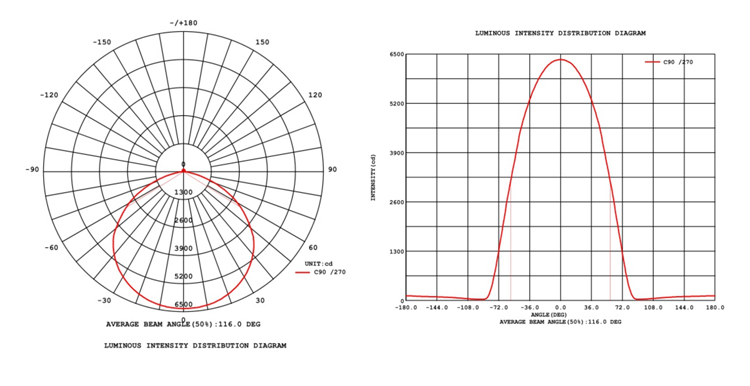

LUMINOUS INTENSITY DISTRIBUTION

Luminous Intensity Distribution chart

Projects

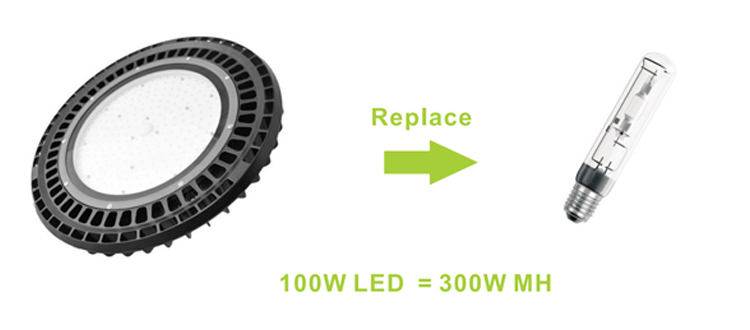

By using our 100w high bay light to replace 300w metal halide bulb for warehouse high bay lighting fixtures, the customer is now able to save a lot per month from his electric bill.

Warehouse high bay project display
Note
  • Don't take the LED lamp apart.
  • The LED lamp must work under the right voltage according to the specification.

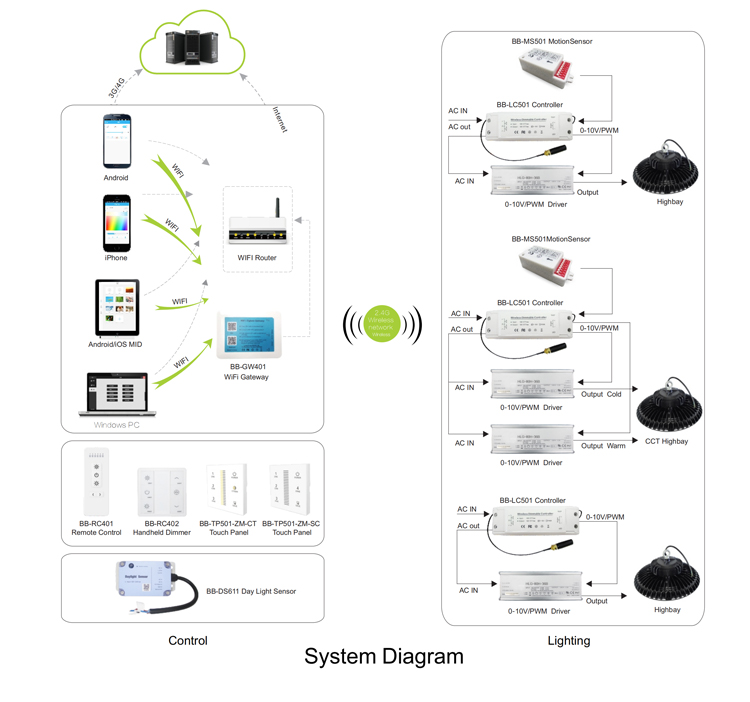

High bay control system

  • 1. Support automatic luminance change with embedded daylight sensor.
  • 2. Support automatic CCT change with embedded temperature sensor for CCT light.
  • 3. Support more 500 devices control by one gateway,one app.
  • 4. Support frequency hopping technology for strong anti-jamming ability.
  • 5. Support mesh network,control range is more 50 meters.
  • 6. Support storage of 500 devices QR codes in gateway.
  • 7. Support schedule settings for each device.
  • 8. Support above 10 mobile devices control on station mode.
  • 9. Support remotely control via internet on station mode.
  • 10. Support remote control / touch panel / handheld dimmer control as optional.
  • 11. Support scene / area / group control based on user preset.
  • 12. Support encryption transmission.
  • 13. Support IOS / Android / Windows APP.
  • 14. Support Motion sensor.

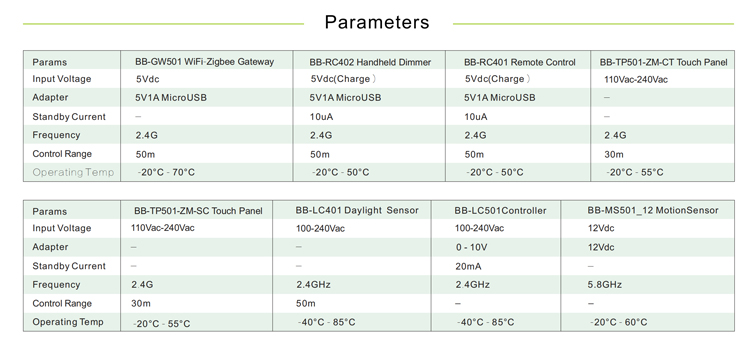

Control system illustration 1 Control system illustration 2 Control system illustration 3 Control system illustration 4

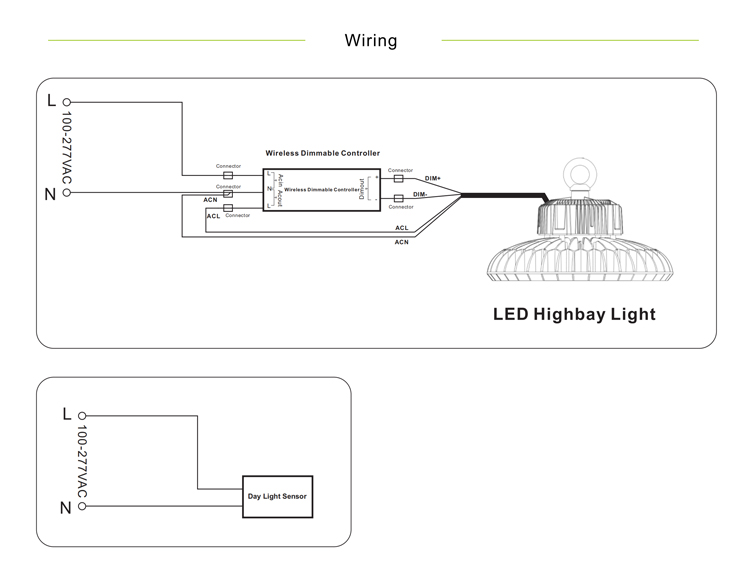

Only wireless dimmable controller and day light sensor must be wired in accordance with the above wiring.
WIFI gateway and touch panel are energized through an adapter, respectively.

Installation

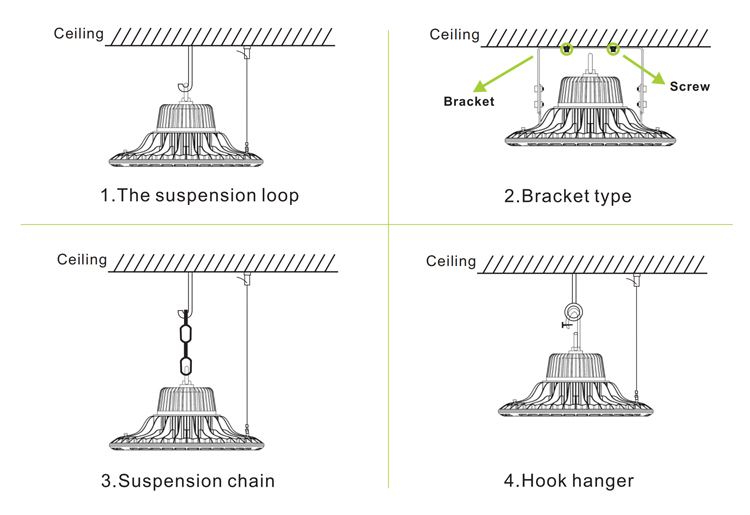

UFO LED high bay light has 4 kinds of installation.

Installation types diagram

Our Factory

Factory building facade
Factory workshop interior

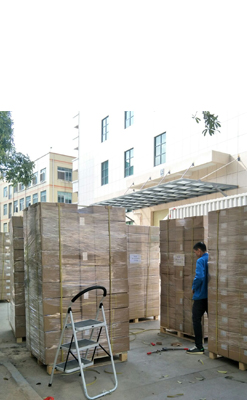

Factory operations 1 Factory operations 2 Factory operations 3

Frequently Asked Questions

What is the energy-saving capability of these UFO LED high bay lights?
Our UFO LED high bay lights replace conventional HID/HPS fixtures while consuming much less power. They offer an energy-saving efficiency of 70% to 80%, substantially decreasing monthly electricity expenses.
What control methods are supported by the high bay control system?
The control system is versatile and supports APP control (iOS/Android/Windows), remote control, touch screen panel, light-sensitive sensors (daylight sensors), and embedded temperature sensors for automatic CCT adjustment.
How robust is the heat dissipation on these fixtures?
These lights are engineered with a precision die-cast aluminum housing and advanced heat sinks that optimize thermal management. This keeps the fixture running cool, ensuring a reliable lifespan of over 50,000 hours.
What installation accessories and methods are offered?
Our UFO high bays offer 4 distinct installation styles, utilizing either a ring mounting system for suspended hanging configurations or a bracket mounting layout for structural surfaces.
Can these lights withstand dust and water in industrial environments?
Yes, our fixtures carry an IP65 ingress protection rating, making them completely dust-tight and resistant to low-pressure water jets, perfect for harsh warehouse and industrial settings.
