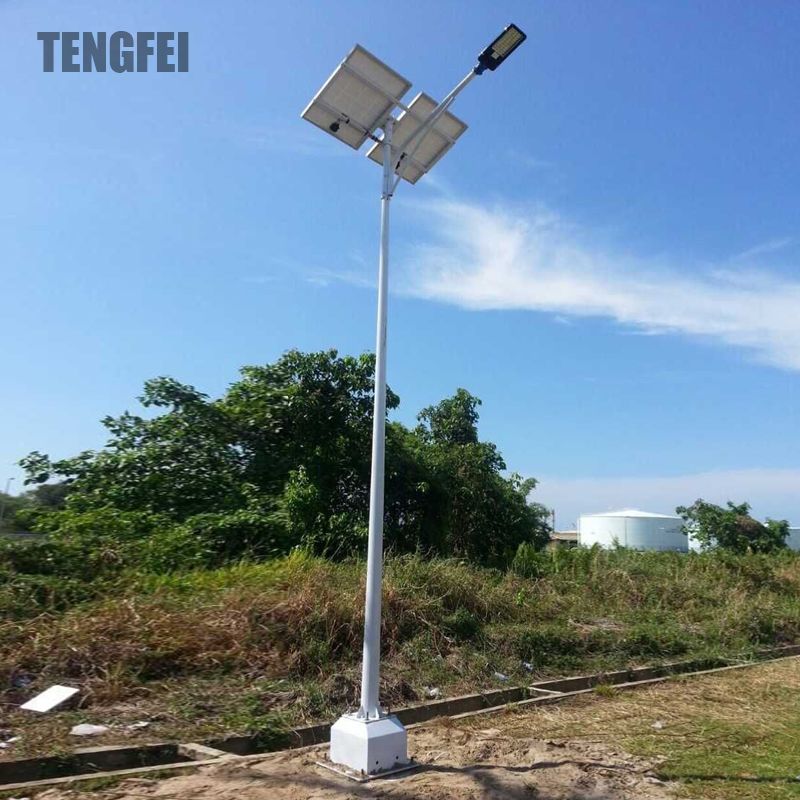

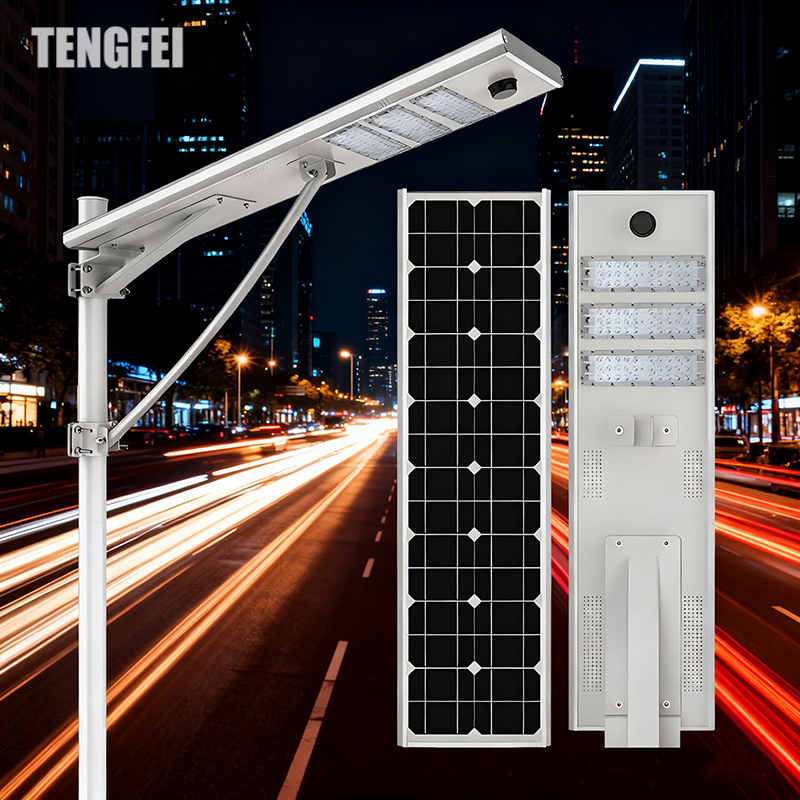

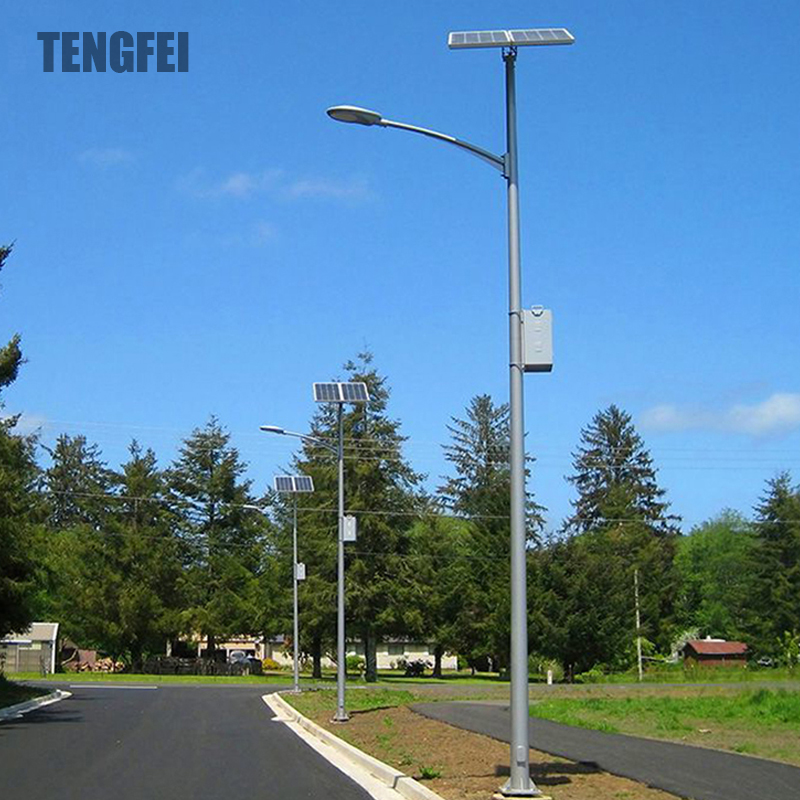

Easy Install Aluminum Manufacturer Led Street Solar Light For Smart City

1 / 5

Easy Install Aluminum Manufacturer Led Street Solar Light For Smart City

Send Inquiry

Product Description

Technical Solution

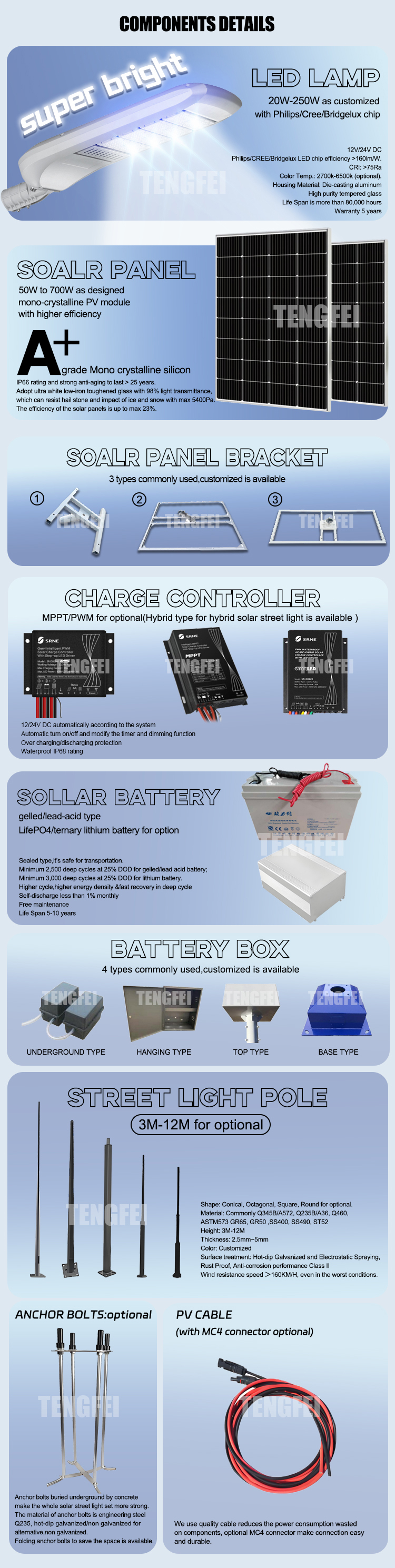

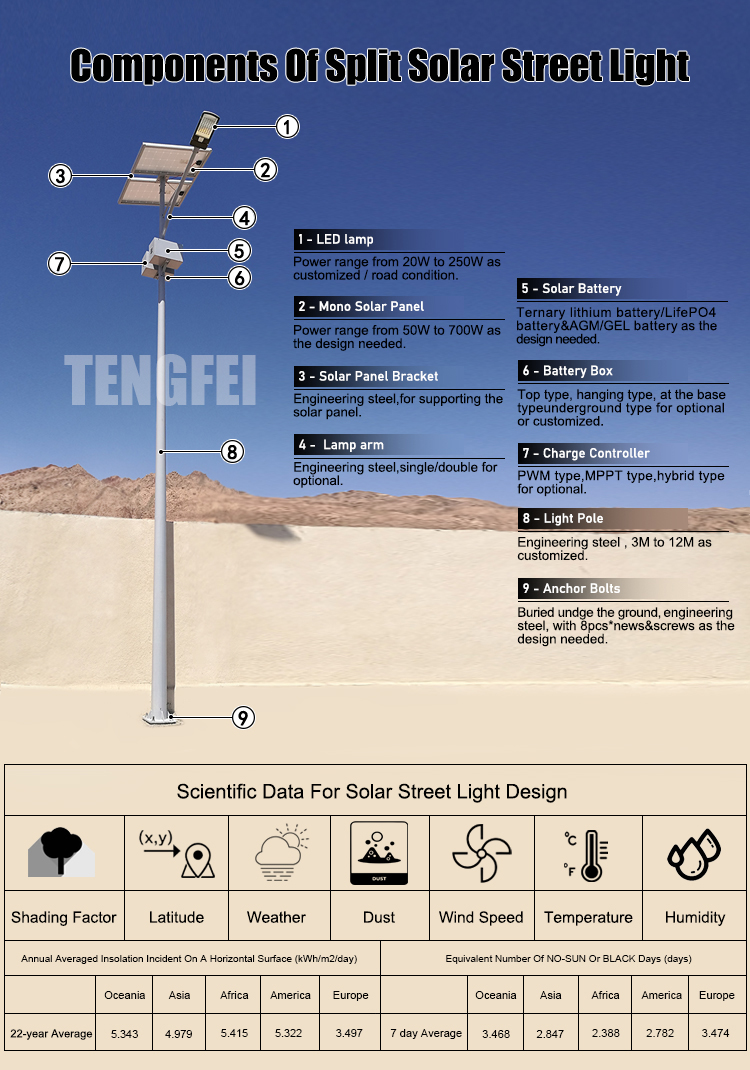

No.	Components	10M Pole 80W LED Solar Street Light Specs	Life Span	QTY
1	Solar Panel	270W/36V, Mono Crystalline, >22.12% Efficiency.	>25 years	1 pc
2	LED Lamp	80W-24V, Phillips Lumileds 3030, 160LM/W, 3700K-6500K, IP66-IP68	>80,000 hrs	1 pc
3	Lighting Pole	10M conical, single arm, Q235 Steel, Hot dip galvanized, Powder coating, Rust Proof.	>25 years	1 pc
4	Solar Panel Bracket	Detachable, Q235 steel, Hot dip galvanized, Powder coating, Rust Proof.	>25 years	1 pc
5	Foundation Kit	Detachable, Q235 steel.	>25 years	1 pc
6	Charge Controller	15A, Automatic dusk to dawn auto dimming.	>8 years	1 pc
8	Battery Options	Option 1 120AH/12V*2PCS GEL battery, Free Maintenance, Deep cycle, Gel type.	>10 years	1 pc
8	Battery Options	Option 2 84AH/25.6V LiFePO4 battery, Lighter Weight, Longer Cycle Lifespan, Lithium type.	5~10 years	1 pc
9	Battery Box Options	GEL battery: Underground battery box.	>5 years	1 pc
9	Battery Box Options	Lithium battery: Top or hang on the pole, holds 1 battery.	>10 years	1 pc
10	Cables	2*1.5mm², from LED lamp to controller.	>20 years	3-8 M
		2*4mm², from solar panel to controller.		2-8 M
		2*4mm², from solar battery to controller.		2-5 M

System Working Parameters & Configurations:

Working performance: 10-12 hrs/night at intelligent working mode * 2-3 overcast days, 5.0 KWH/M²/day.

Note: Pole heights from 3M to 12M are available for solar street light selection, and 15M-50M for high mast poles.

LED Power options: 15W to 150W for solar street light configurations.

Customized design is available. Solar street light with remote functions is optional.

Frequently Asked Questions

Q1: What are the main benefits of the 10M Pole 80W LED Solar Street Light?

This system combines high-efficiency mono crystalline solar panels (>22.12% efficiency) with high-output Phillips Lumileds LEDs (160LM/W), ensuring reliable and bright illumination. The Q235 hot-dip galvanized steel pole provides exceptional rust resistance, securing a lifespan of over 25 years.

Q2: How does the system handle consecutive rainy or overcast days?

The intelligent charge controller manages the energy consumption to ensure 10-12 hours of nightly operation. The system's standard configuration supports autonomous working for 2 to 3 consecutive overcast or rainy days without running out of power.

Q3: What is the difference between the GEL battery and LiFePO4 battery options?

GEL batteries are robust, maintenance-free, and typically installed in underground protective boxes with a lifetime of over 10 years. LiFePO4 (Lithium) batteries are lighter, have a higher depth of discharge, offer a longer cycle lifespan, and can be mounted directly on the top or side of the pole.

Q4: Are customization options available for pole height and LED wattage?

Yes, we support tailored configurations. Pole heights range from 3 meters to 12 meters for standard street lighting, and up to 15 to 50 meters for high mast applications. LED configurations are adjustable from 15W to 150W depending on site-specific lighting requirements.

Q5: How does the automatic dusk-to-dawn control work?

The system features a 15A smart charge controller that automatically detects solar voltage changes. It switches the LED lamp on at dusk, manages intelligent brightness dimming through the night to save energy, and turns off the light automatically at sunrise.
