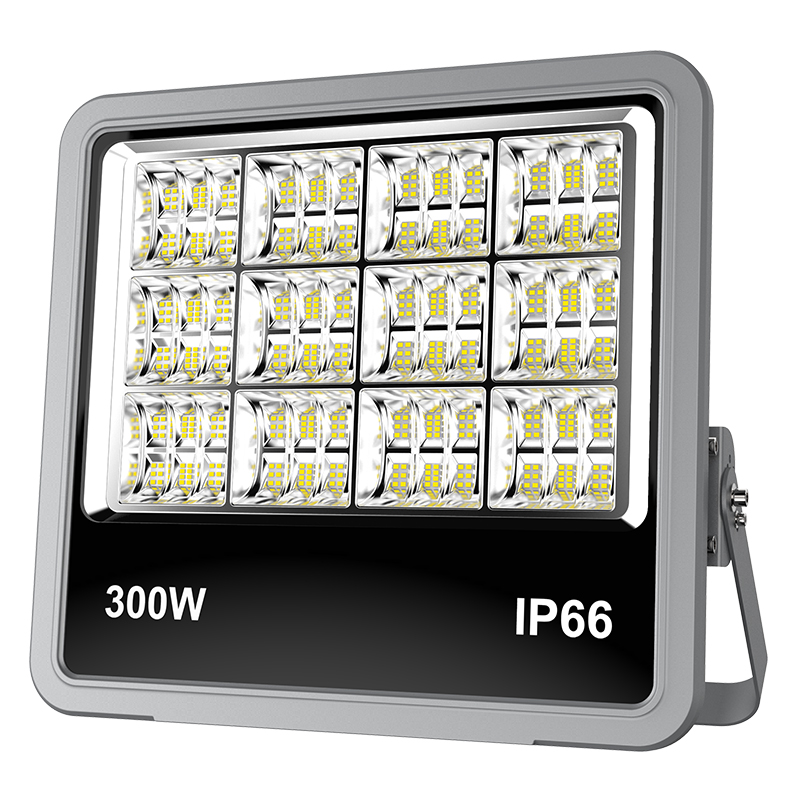

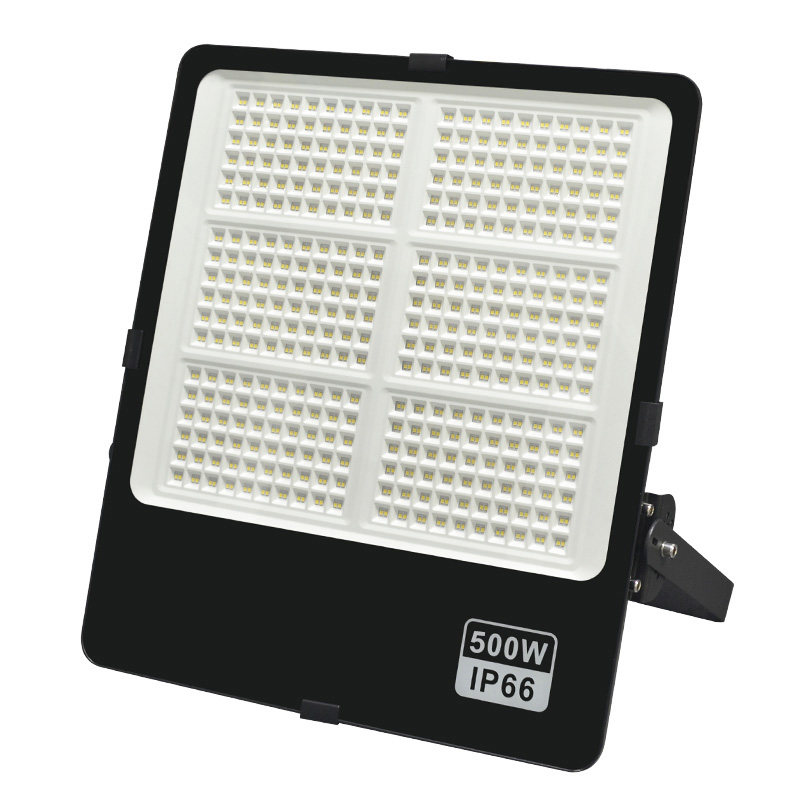

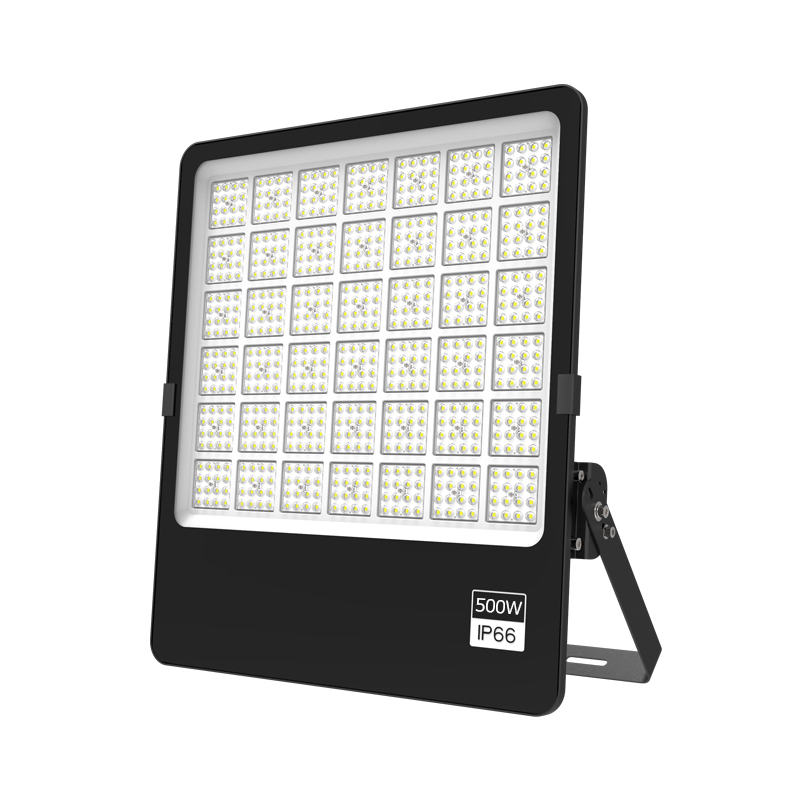

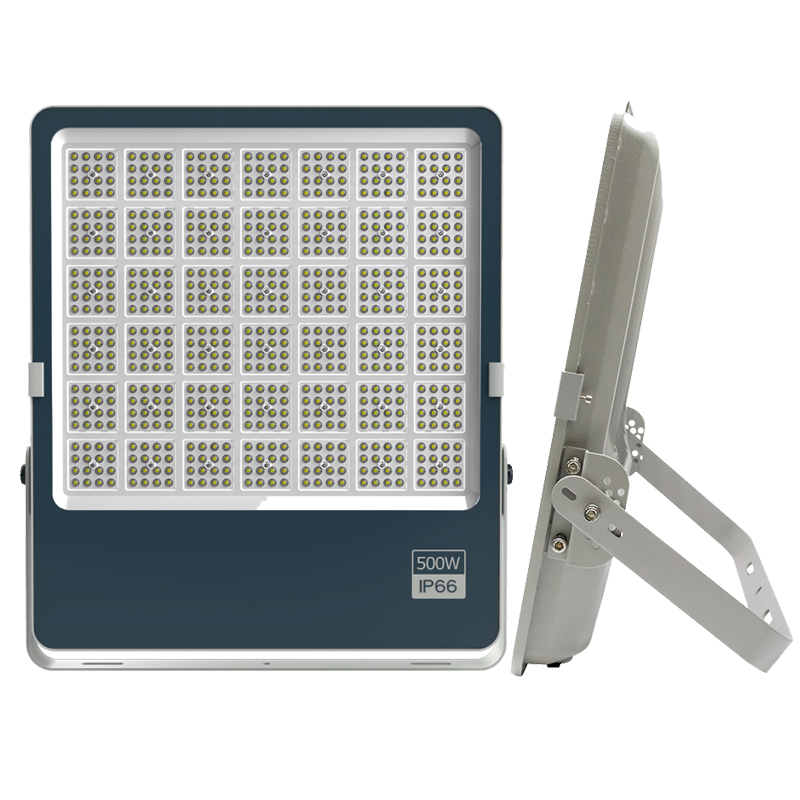

500W Floodlight Aluminum IP66 Outdoor Stadium Tennis Court Basketball Projector Led 50W 100W 200W 300W 400W Flood Light

Product Description

500W Powerful Floodlight Aluminum IP66 Outdoor Stadium Tennis Court Basketball Projector 50W 100W 200W 300W 400W Flood Light Led
Product Description
💎

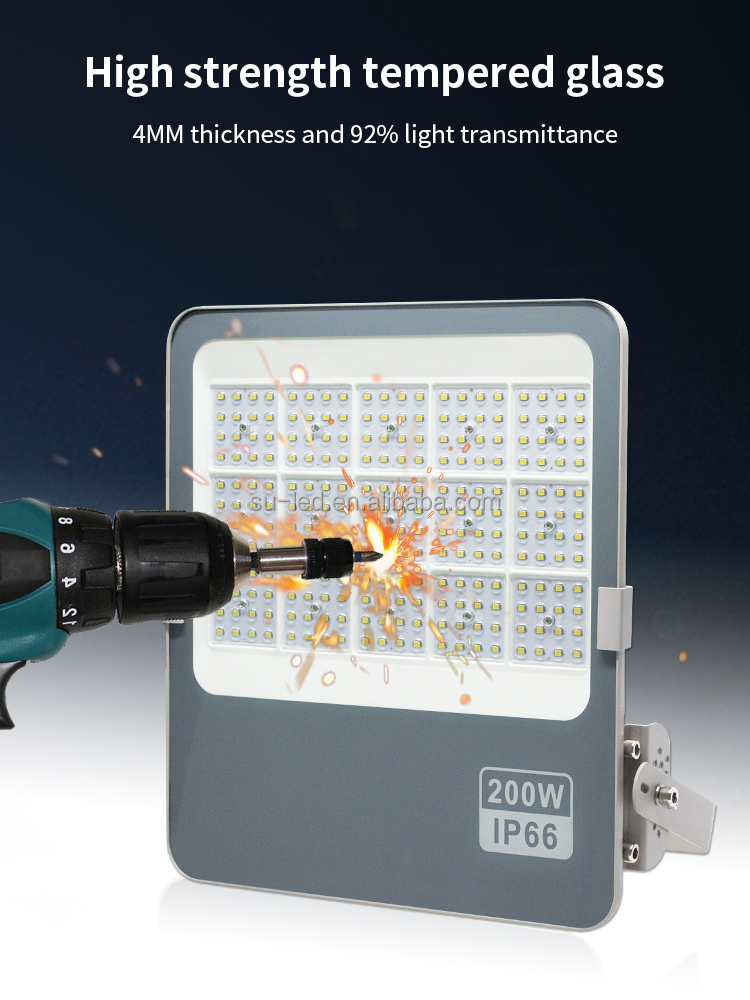

HIGH HARDNESS GLASS
Adopting 4mm high density and high hardness tempered glass, IK08 against shocking and 90% light transmission rate.
📐
OPTIONAL BEAM ANGLES
Attaching optical lens for 30º, 60º, 90º and 120º inside, different angle with different lighting effect, applicable for different regions.
⚙️
DIECAST ALUMINUM, BETTER HEAT SINKING
High density and thick ADC#12 aluminum, much better heat sinking than common AL or ABS in the markets. The LED flood light is treated with graphene coating, which has better thermal conductivity and stronger weather resistance, heavy weight, efficient heat dissipation, and extended service life.
🧠
SMART FUNCTIONS AVAILABLE
Based perfect performance, the LED flood light can be considered to produce smart functions: 0-10 dimming, light control, motion sensor etc.
💡
HIGH LUMEN LED CHIPS
Super bright and low light dissipation famous brand SMD 2835 240 PCS LEDs as light source to meet high light luminous efficiency 110-120lm/W. Higher light efficiency is available.
CONSTANT CURRENT DRIVER
High accurate constant current waterproof driver with stable performance and circuit protection, able to meet power factor 0.9, perfectly meeting full load power consumption. Moreover, brand drivers are available.
🛠️
FREE REPLACEMENT, EASY INSTALLATION
Offer warranty 3 /5 years. During this period, any product problem can be replaced freely. The lamp is very easy installation, 2 expansion screws just.
🌍
WIDE APPLICATION
The flood lights can be applicable for many applications such as street, road, stadium sport fields, tennis court, gymnasium, football, soccer, baseball, volleyball, airports, harbors, squares, docks, plaza, wharf, warehouse, workshop, building outline, bridge, sculpture back light, station, cellar, arena etc.
Product Models
Model Voltage Rated Watts Size (mm) Light Efficiency
SU-TJ23-50W AC100-277V 50 Watts L191*W216*H41 110-120lm/W
SU-TJ23-100W 100 Watts L240*W281*H44
SU-TJ23-200W 200 Watts L325*W362*H50
SU-TJ23-300W 300 Watts L424*W387*H52
SU-TJ23-400W 400 Watts L445*W445*H55
SU-TJ23-500W 500 Watts L560*W485*H60
Remarks:
  • 1. The different power can be customized.
  • 2. Lamp color temperature can be customized.
  • 3. Cable length can be customized.
  • 4. LOGO can be printed based on MOQ.
  • 5. Driver brand can be optional.
  • 6. Housing colors is optional.
Specifications
Product Name Outdoor Led Flood Lights
Usage Street, road, stadium, playground, sport fields
Product Model SU-TJ23-100W SU-TJ23-200W SU-TJ23-500W
Rated Power 100W 200W 500W
Luminous Flux 11000-12000LM 22000-24000lm 55000-60000lm
Dimension (MM) L240*W281*H44 L325*W362*H50 L560*W485*H60
Optional Wattages 50w, 100w, 200w, 300w, 400W, 500w
Work Voltage AC85-265V, 50/60Hz
LED Chip High lumen SMD2835
Driver Constant current driver
Color Temperature 3000K, 4500K, 5500K, 6500K (Special colors can be customised)
Body Material Aluminum
Cover Material Tempered glass
Surge Protection 4KV - 6KV
Anti-shock Level IK08
Waterproof Protection IP66
Standard Wire 50cm cable
Beam Angle 120 / 90°
CRI >70Ra
PF >0.9
SDCM <5
THD <20%
Efficiency 90%
Work Temperature -30~ +50°C
Storage Tempeature -40 ~ +60°C
Finished Body Color Grey / Black
Grade Of Safety Class I
Certification CE ROHS
Working Time 50,000H
Warranty 3 Years
Product Table Images

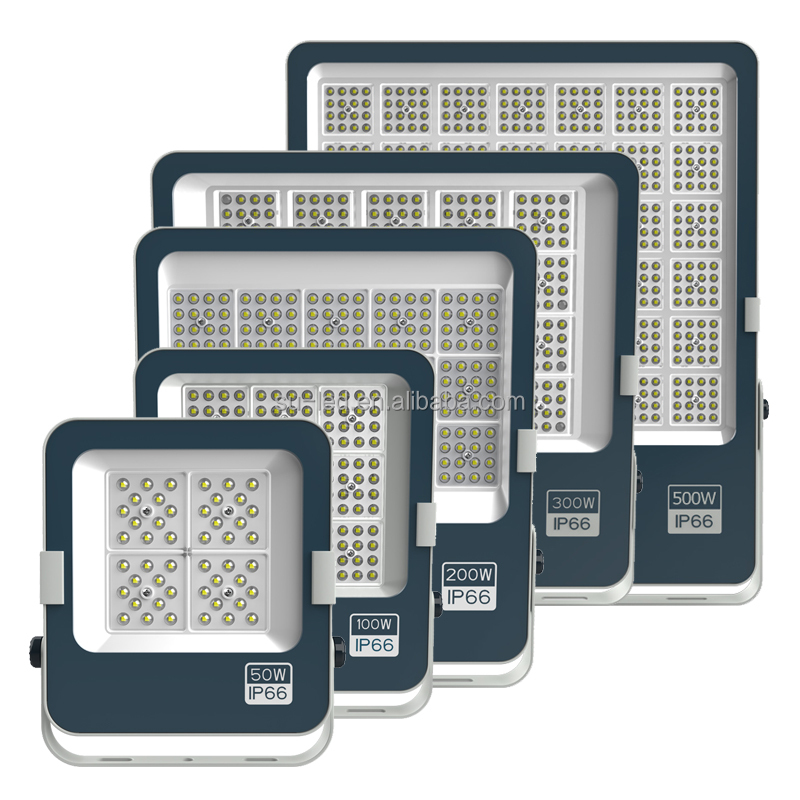

LED Floodlight Details 1

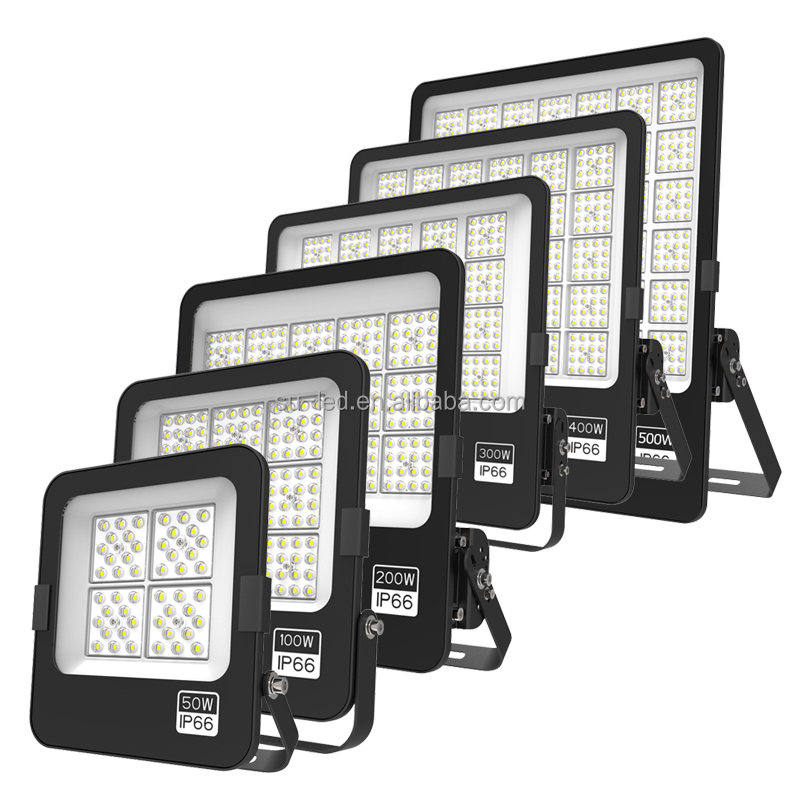

LED Floodlight Details 2
Product Showcase

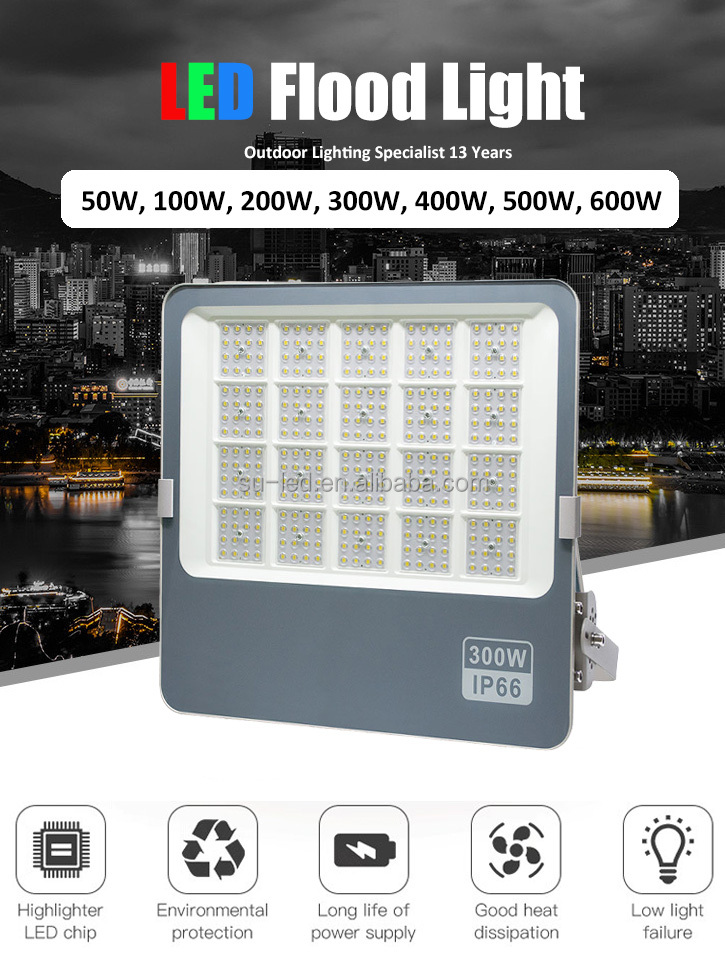

LED Floodlight Application 1

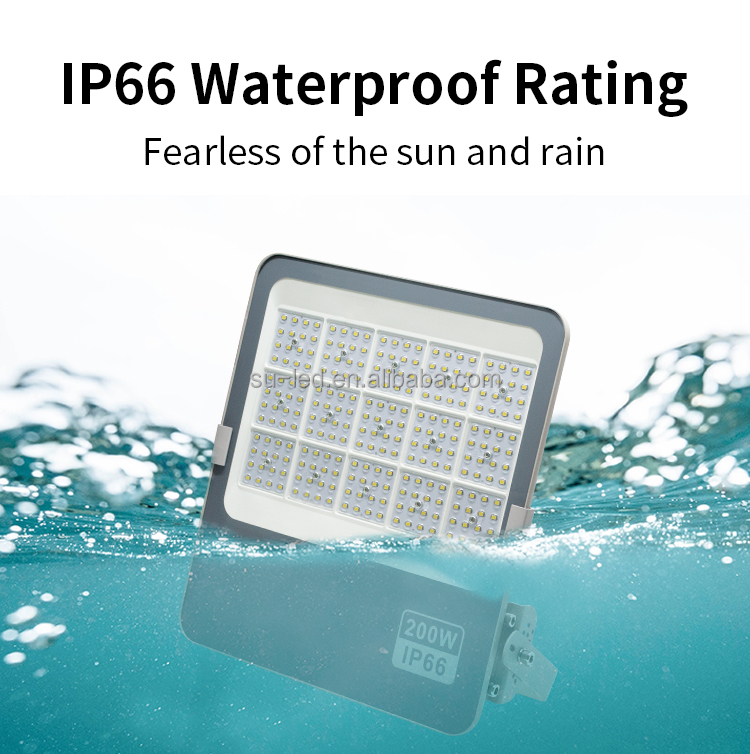

LED Floodlight Application 2
LED Floodlight Application 3

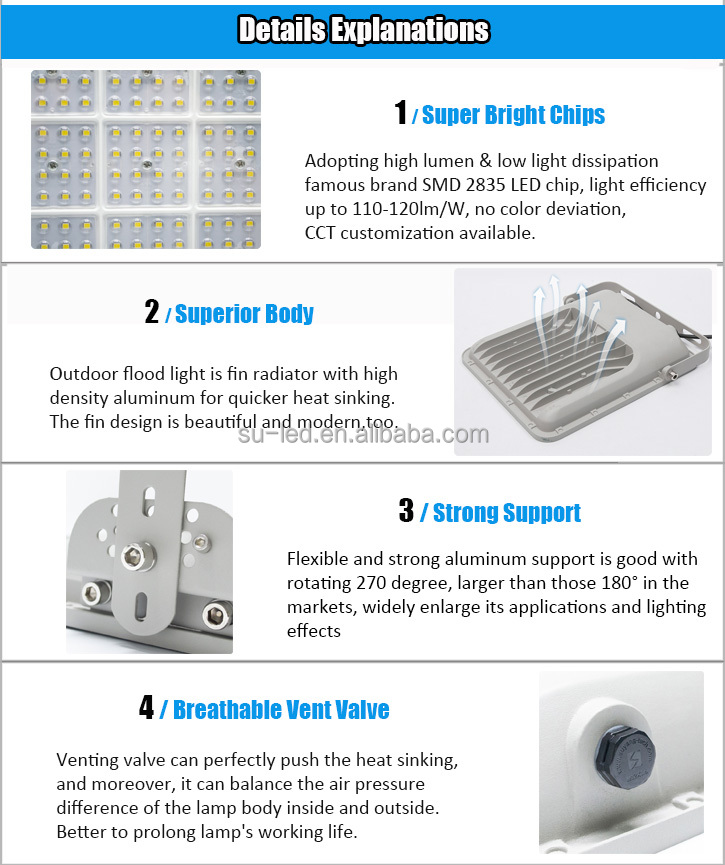

LED Floodlight Application 4

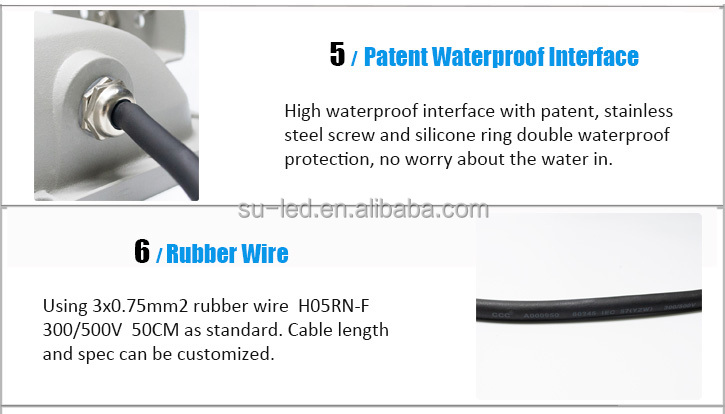

LED Floodlight Application 5

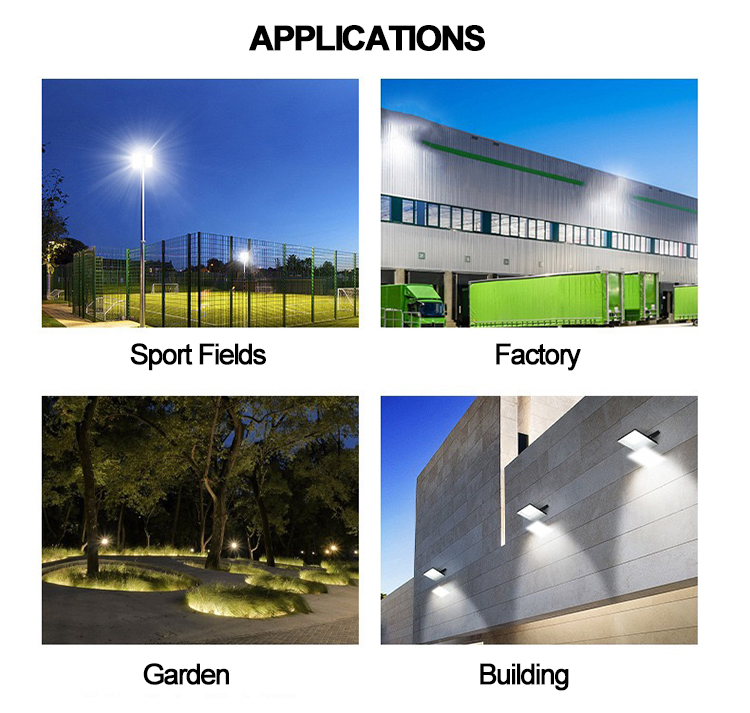

LED Floodlight Performance Features
Products Recommendation
Packing & Delivery
SU-CB series packaging can be color box, white box for your choice.
Packing Style 1
Packing Style 2
Facility Overview
Facility Image 1

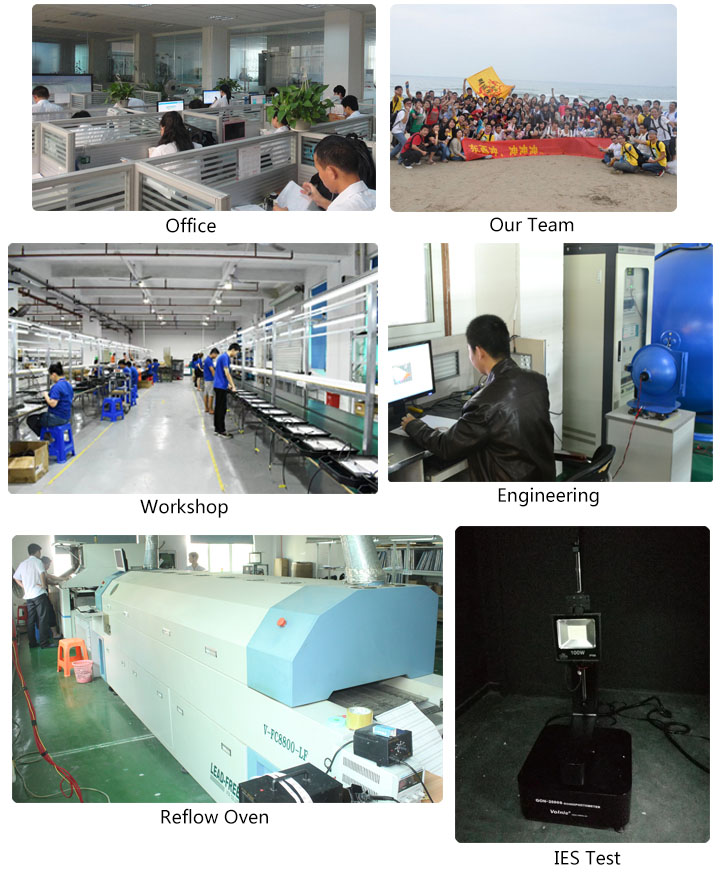

Facility Image 2

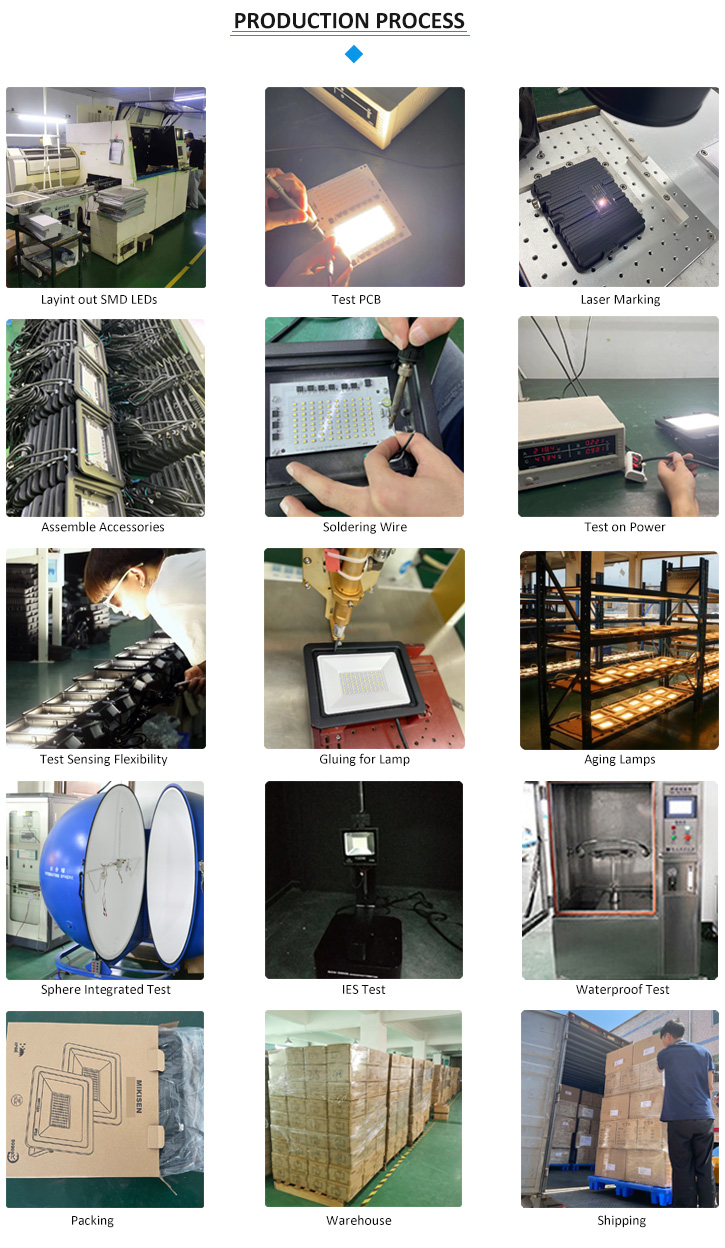

Facility Image 3
Facility Image 4
Frequently Asked Questions
❓ 1. Can I have a sample?
Re: Yes, sample orders are welcome. Mixed orders are also welcome.
❓ 2. Are you a factory?
Re: Yes, we are a factory with over 13 years of experience. We mainly produce outdoor LED flood lights, street lights, high bay lights, stadium lights, etc.
❓ 3. Do you have OEM or ODM service?
Re: Yes, we welcome OEM and ODM requirements. We have extensive experience servicing OEM and ODM buyers.
❓ 4. How do you control the product quality?
Re: Firstly, all raw materials are tested before stocking. During production, we check functional performance, circuitry, and waterproof sealing. Finally, all finished products undergo inspection and aging tests.
❓ 5. Can you offer a favorable discount?
Re: Yes, bulk orders qualify for competitive volume discounts. Please contact us for more details!
❓ 6. Do you have a product catalog?
Re: Yes, we do. Please feel free to request it, and we will send it to you shortly.
